Acewell Digital Instrument ACE-5854 black
The Acewell ACE-5854 Motorcycle Digital Speedometer can display the following 6 functions simultaneously:
- Bar tachometer
- digital numeric speed display
- Temperature
- Bar Tank indicator
- gear indicator
- further measured value of your choice
- following measured values can be displayed:
- speed
- Temperature 1 +2 (air temperature)
- voltmeter
2 trip meter - Total mileage display
- Time
- Gear indicator
- as well as all other measured values
- option to display the speed with or without comma Digit
- Bar graph tachometer on or convertible to 10,000 or 20,000 rpm
- 8 LED indicators included
- Start of a separate odometer display when the reserve is reached
- optional Scrolling of line 2 in 1-20 second cycle or manually via key
- optional service mode reminder function adjustable in km or operating hours.
- Integrated lap timer 99 lap times can be stored
- Settable switching and overtemperature warning with LED display
7 bars for tank and temperature display - Tank sensors adjustable: +/-10 - 990 Ohm resp. OFF mode
- Hour meter and total kilometers permanently stored
- Adjustable wheel circumference 1- 3.999mm (1mm resolution)
- When new, the total mileage is freely adjustable for the first 30 km
- Distance meter: 0-100m, 0-400m & quarter mile
- acceleration time: 0-100km/h, 0-60mph & 50-70mph
- deceleration meter: 100-0 km/h
- Battery monitoring adjustable from 11.0 to 14.9 Volt
- gear display is taken from rpm and speedometer and can be switched off via OFF mode
- Comfortable Remote control on handlebar. This allows all functions to be easily accessed without taking your hand off the handlebars. The manual
Lap-Timer function can be activated as well. - E Test marks and ABE in preparation

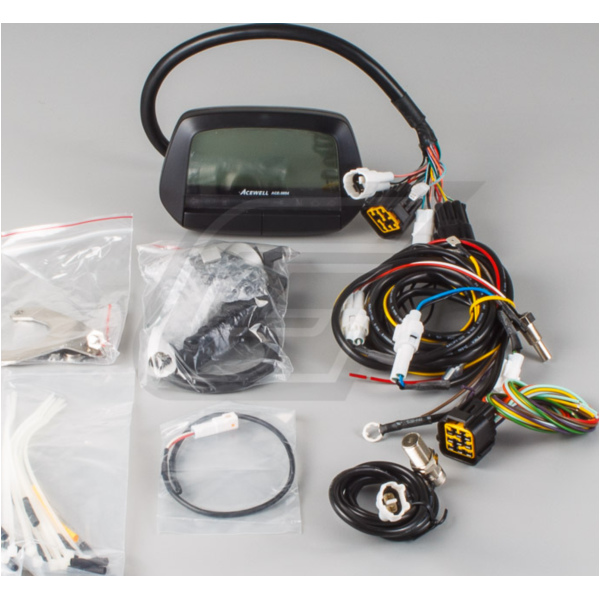

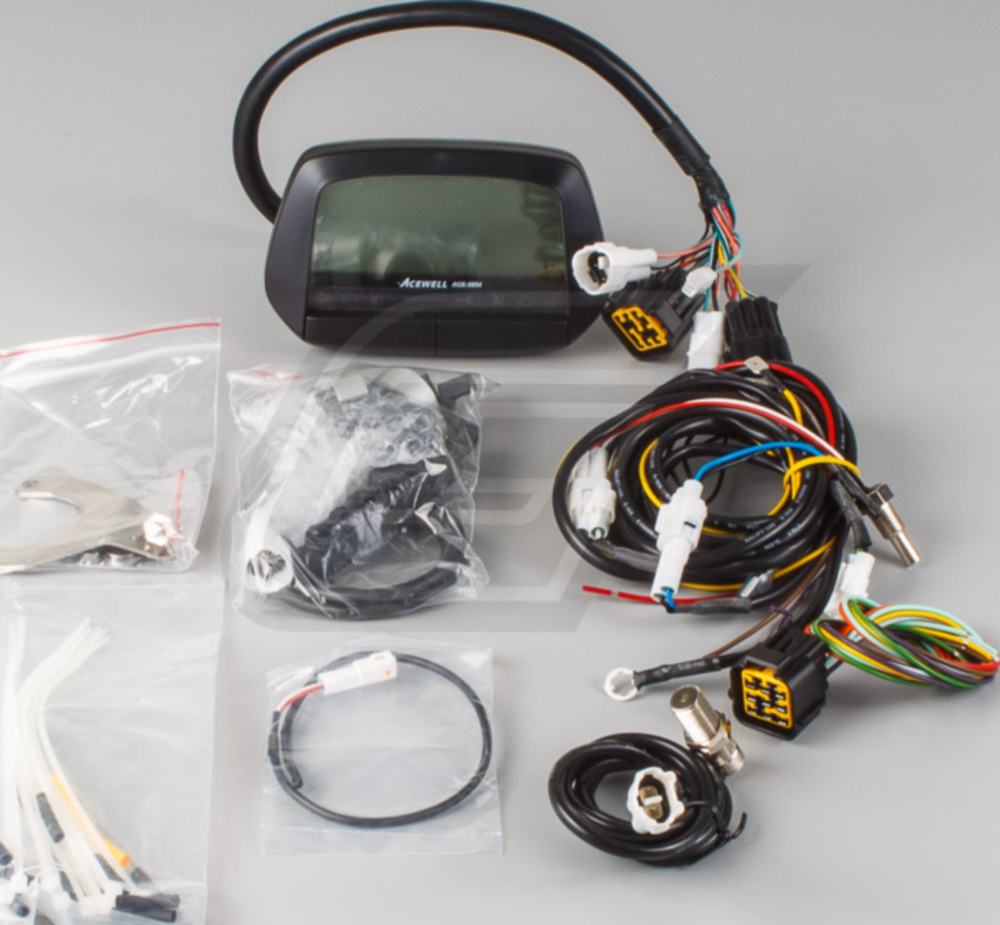

- Remote control with latch set
- Hall sensor for speed measurement with
- Magnet
- Temperature sensors for air and motor
- watertight mating connector set (cable set) with shrink tubing
- Instrument holder
- fastening material
- German installation instructions with circuit diagram
Color: schwarz
EU Responsible Person : BTS GmbH, Plochingerstrasse 41, Otsfildern, 73760, info@biketeile-service.de
Attention! Does not fit for Honda CA Rebel 125 JC24 1995, 11 PS, 8,1 kw
Please note, that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.:
