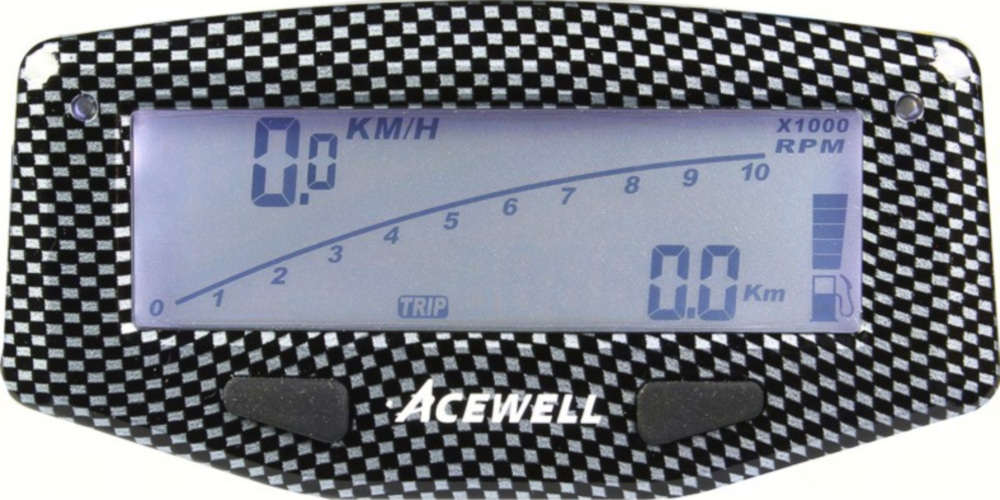

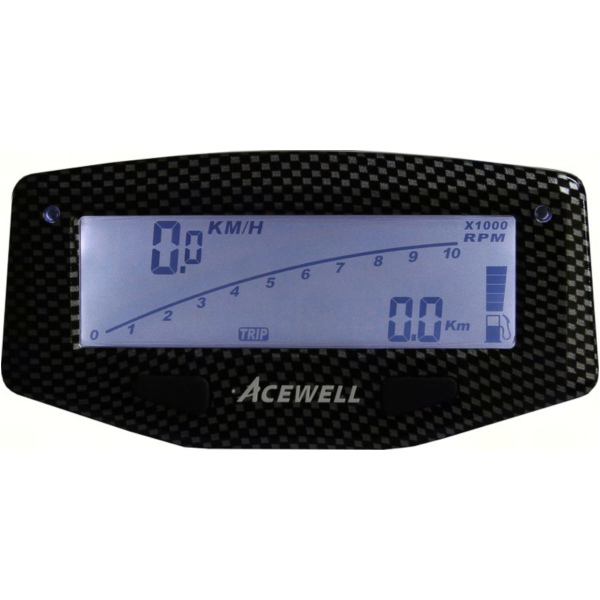

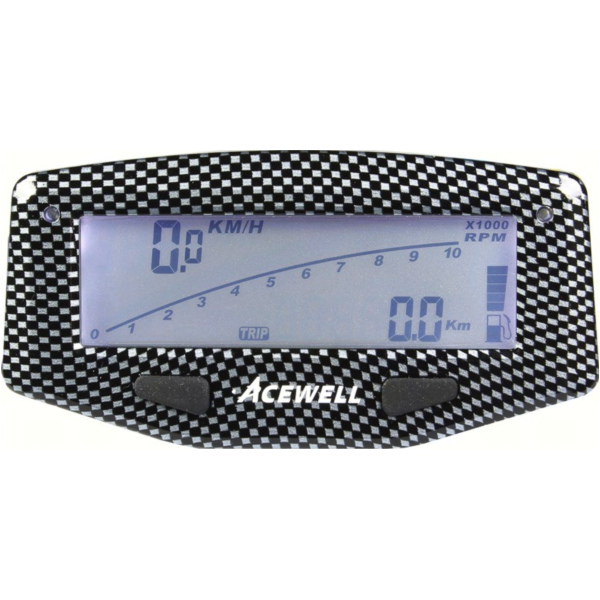

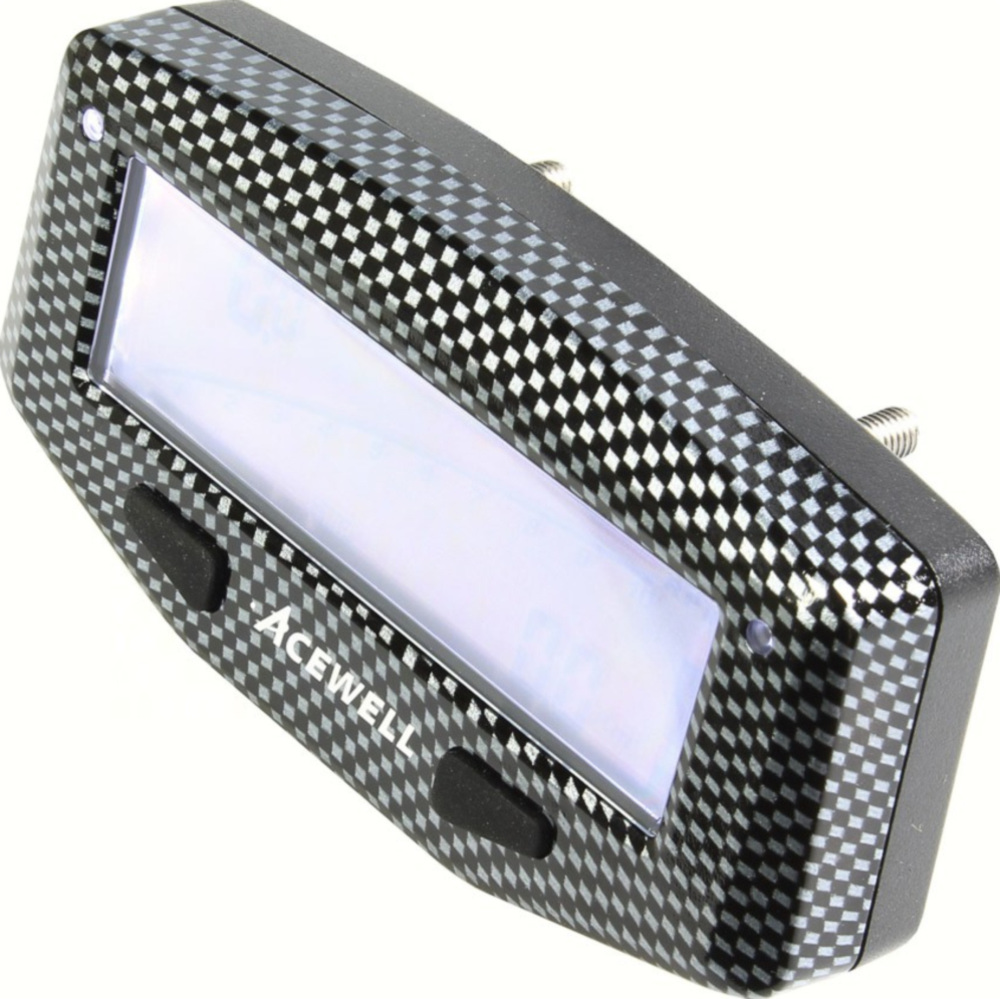

ACE-1600 speedometer, tachometer, temperature and fuel gauges, carbon look
Enter the world of Acewell High End products. The ACE-1600 motorcycle computer features speedometer, tachometer, temperature and fuel gauges.
Features
The Acewell ACE-1600 motorcycle speedometer & tachometer displays the following values simultaneously:
- Bar Tachometer
- digital Speedometer up to 399,9 km/h
- Bar-Temperature Gauge OR
- Bar-Fuel Gauge
- other function/value of your choice
- Trip Meter
- Odometer
- Temperature
- Voltage meter
- Riding Time
- Operating Hours
- all of the values mentioned in the following description can be shown permanently
- adjustable shift and temperature LED warning
- Features a 99 lap-timer
- Bar Tachometer scale can be switched between 500 - 10.000 RPM or 1.000 - 20.000 RPM
- Universal wheel circumference setting range: 1-3999mm (1mm resolution)
- Fuel gauge can be connected to +/- 100 Ohm, 250 Ohm, 510 Ohm senders or OFF mode
- End user is able to adjust odometer when the odometer is less than 30km /18.6 miles
- Display in kilometers or miles (switchable)
- not energized saving of computer data
- displaying clock when ignition is off
- The device can be run with the included button cell or by the motorcycle battery
- E-Mark certified
- ABE available
- Hall Speed Sensor with Magnet
- Temperature Sensor M10x1,0
- Stainless Steel Bracket
- Fitting Kits
- Waterproof wiring harness
- English manual and circuit diagram
Specifications
| Function / Value | Specifications | Interval | |
|---|---|---|---|
| Bar-Tachometer A | 500-10.000 rpm | 500 rpm | |
| Bar-Tachometer B | 1.000-20.000 rpm | 1.000 rpm | |
| Digital Tachometer | 10-19.900 rpm | 10 rpm | |
| Shift Warning | 100-19.900 rpm | 100 rpm | |
| Speedometer | 2,4-399,9 km/h / mph | 0,1 km/h / mph | ±1% |
| Digital Temperature | +50°C - +180°C / 122°F - 356°F | ||
| Bar Temperature Gauge | 1-7 Bars | ||
| Max. Temperature | +50°C - +180°C / 122°F - 356°F | ||
| TRIP 1&2 | 0 - 9999,9 km / mi | 0,1 km / mi | ±0,1% |
| Odometer | 0 - 99999,9 km / mi | 1 km / mi | ±0,1% |
| Max. Speed | 2,4-399,9 km/h / mph | 0,1 km/h / mph | |
| Average Speed | 2,4-399,9 km/h / mph | 0,1 km/h / mph | |
| Riding Time RT | 0:00'00'' - 99:59'59'' | 1 sec | ± PPM |
| Total Time TT | 0:00' - 9999:59' | 1 min | ±50PPM |
| Clock | 0:00'00'' - 23:59'59'' | 1 sec/1 min | ±50PPM |
| Voltage meter | 6,0-36,0 Volt | 0,1 Volt | |
| Bar-Fuel Gauge | 1-7 Bars | 100,250,500 Ohm optional | |
| Lap Timer | 0:00'00'' - 99:59'59'' | 99 Laps |
| Power Input | 12V DC or button cell CR2032 |
| Tachometer Sensor | CDI or Ignition Coil Signal |
| Speed Sensor | Hall Sensor (If run with button cell optional Reed Sensor required) |
| Temperature Sensor | Thermo-Sensor M10x1,0 |
| Wheel circumference setting | 1mm - 3999mm (1mm-resolution) |
| Operating temperature range | -20°C - +80°C (housing inner) |
| Storage temperature range | -30°C - +90°C (housing inner) |
| Dimensions | 110 mm x 55mm x 21,5mm |
| Weight | 150 grams |
The motorcycle computer is able to save the settings,time and distance values except the clock if it is not energized.
Color: carbon
EU Responsible Person : BTS GmbH, Plochingerstrasse 41, Otsfildern, 73760, info@biketeile-service.de
Attention! Does not fit for Peugeot Jet Force C-Tech 50 VGA A1AAAA 2005, 4,9 PS, 3,6 kw
Please note, that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.:
