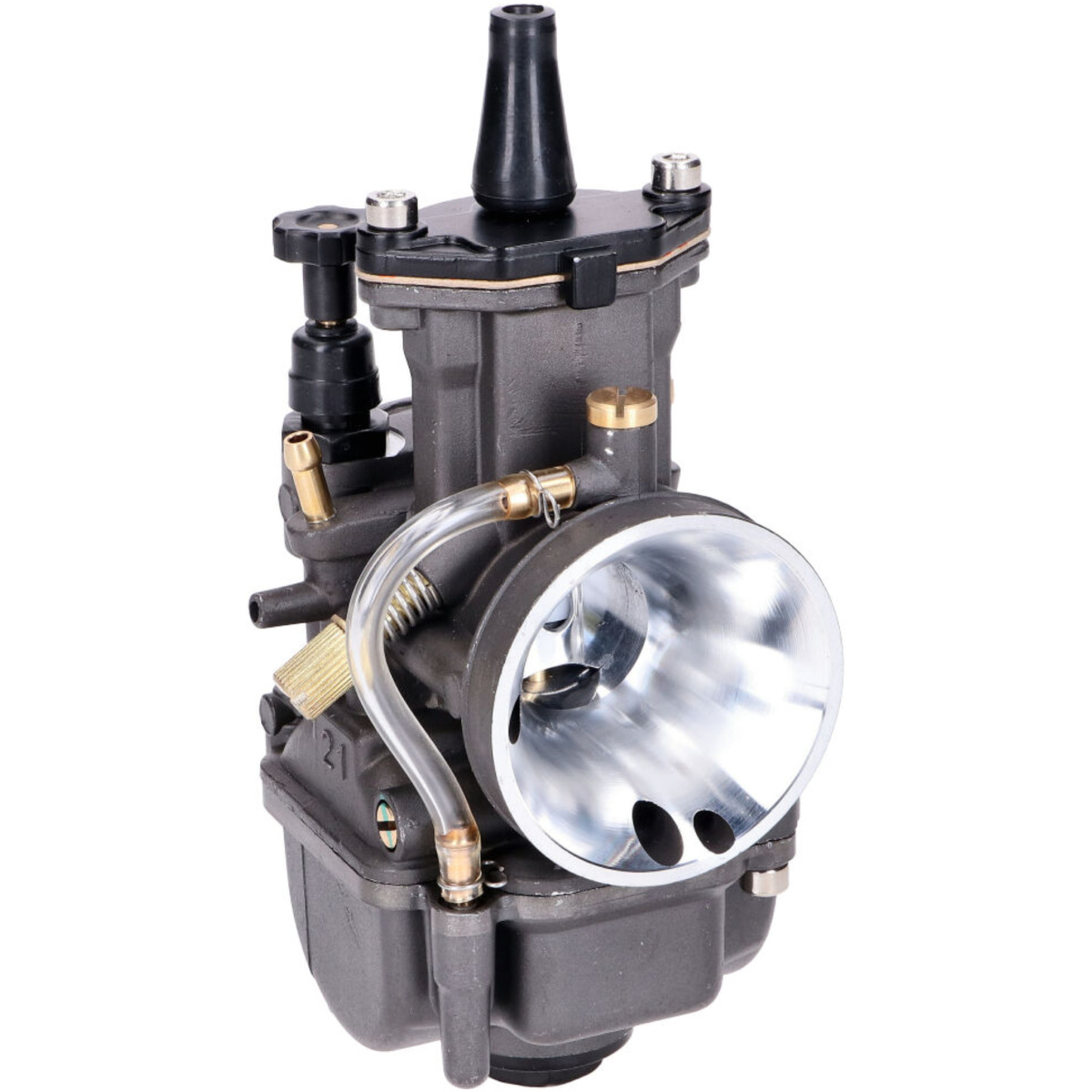

carburetor Schmitt Gunmetal Edition flat slide V.2 Racing 21mm STT48875
The Schmitt flat slide V.2 Racing carburettor in the Gunmetal Edition is particularly suitable for tuning projects with displacement expansion. The CNC machined intake and the popular Powerjet function provide better airflow and thus better engine response. The Powerjet feature aids performance at full throttle.
With the numerous main and idle jets, carburettor needles and other accessories available for PWK carburettors, all options are available for a clean tuning. An underestimated feature is the adjustment of the mixing tube, this affects, for example, the correction air / brake air with the slide fully open both at low and high speeds. The fuel / air ratio should remain constant at all engine speeds. Without correction air, the amount of fuel would increase faster than the amount of air as the speed increased while the slider was fully open. The result would then be over-greasing at high speeds.
The carburettor has a manual choke.
Main jet: 110 (M5) Idle jet: 45 (M6) Powerjet: M5 Intake manifold connection width: 35mm Air filter connection width: 49mm
With the numerous main and idle jets, carburettor needles and other accessories available for PWK carburettors, all options are available for a clean tuning. An underestimated feature is the adjustment of the mixing tube, this affects, for example, the correction air / brake air with the slide fully open both at low and high speeds. The fuel / air ratio should remain constant at all engine speeds. Without correction air, the amount of fuel would increase faster than the amount of air as the speed increased while the slider was fully open. The result would then be over-greasing at high speeds.
The carburettor has a manual choke.
Manufacturer Nr.: Schmitt
EAN: 4057233985402
EU Responsible Person : BTS GmbH, Plochingerstrasse 41, Otsfildern, 73760, info@biketeile-service.de
Attention! Does not fit for Moto Guzzi Griso Special Edition 1200 LSG01 2017, 106 PS, 78 kw
Please note, that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.:
