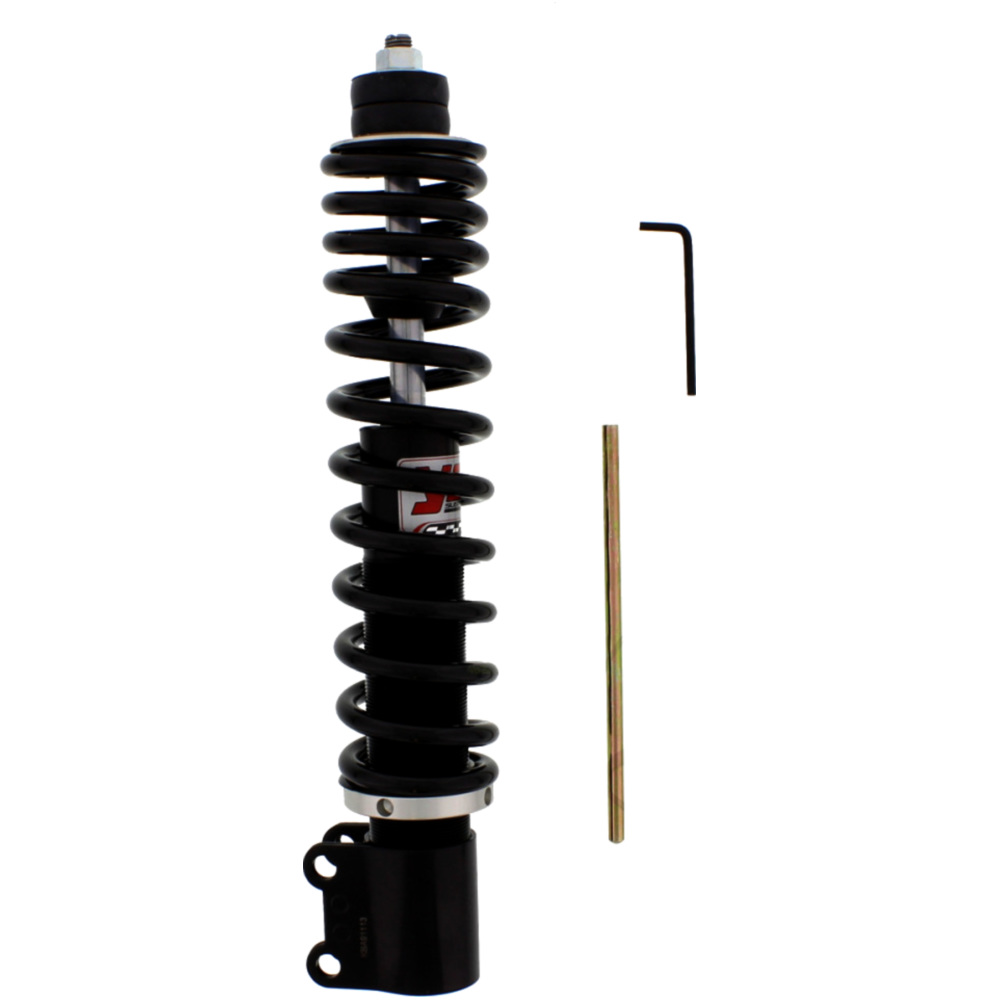

Yss shock absorber VD222240T02X
Priceunit: 1 Unit
Öldruckdämpfer mit Stahlgehäuse, Federbein in Federvorspannung einstellbar.Die Arretierung der Federvorspannung erfolgt mittels Gewindestift.
Das Einstellwerkzeug ist im Lieferumfang enthalten.
Technical data
| Technical Data | |
|---|---|
| Type | Oil damper |
| Top mount | Stud |
| Spigot diameter | 10 mm |
| Length | 240 mm |
| Bottom mount | Double bolt |
| Distance between bolts | 35 mm |
| Adjustment | Preload (continuous) |
| Spring colour | Black |
| Spring Characteristics | 38/40-25-35-220 |
| Damper reservoir | No |
| Manufacturer | YSS |
| Piston diameter | 22 mm |
| Rod Diameter | 12 mm |
Manufacturer Nr.: YSS VD222-240T-02-X
EAN: 8858803414676
EU Responsible Person : BTS GmbH, Plochingerstrasse 41, Otsfildern, 73760, info@biketeile-service.de
Attention! Does not fit for Suzuki GSX Katana 400 GS40XF 1981, 42 PS, 31 kw
Media:
ABEPlease check approvals/GOP!
Homologated vehicles are marked with [Homologation]. No such mark - no homlogation. Feel free to contact us for further questions
MontageanleitungPlease note, that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.:
