BODENFILT Matte 1X20M 3

BODENFILT Matte 1X20M 3 PAINT-STOP GREEN 75MM

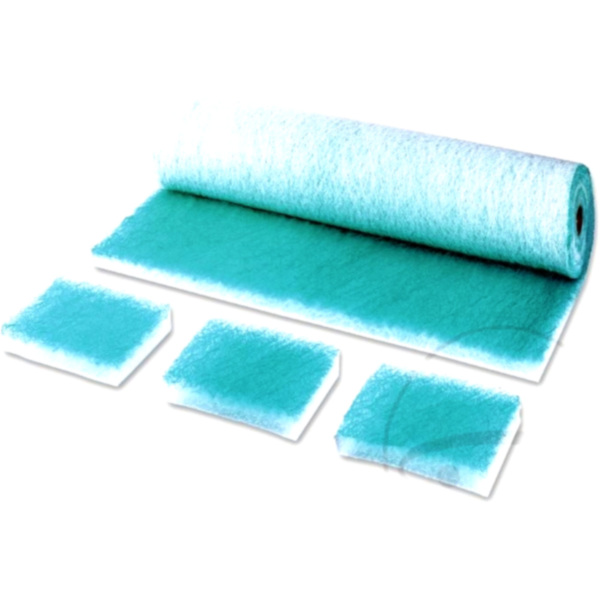

The Volz paint misting mat, Paint-Stop 3 (green), is a premium glass fiber mat designed for paint mist separation in automotive paint shops and other manufacturing facilities, including furniture and machinery.

This floor filter mat efficiently separates paint mist from exhaust air, protecting exhaust air ducts, fans, and motors from color deposits.

Dyed green for easy identification of the dust side, this silicone-free filter mat is free of paint-damaging substances.

Technical Specifications:

Dimensions (WxL): 1 x 20 m
Separation Efficiency: 96%
Material Thickness: about 70 mm (3 inches)
Initial Pressure Difference: 4 - 10 Pa
Recommended Final Pressure Difference: 80 Pa
Nominal Flow Rate: 2500 - 6300 m³ / h / m²
Temperature Resistance: max. 180 °C
Container: Rolled goods

This is an automatic translation. Click here for the original text in German

Volz paint misting mat Paint-Stop 3 "(green)

Glass fiber mat (floor filter mat) for paint mist separation in paint shops and paint spray booths of the automotive industry and other production facilities for furniture, windows, machines, etc.
Separates the paint mist from the exhaust air, thus the exhaust air ducts, fans and motors are protected against color deposits
The filter mat is dyed green to identify the dust side
silicone free
Free of paint-damaging substances

Technical specifications:

Dimensions (WxL): 1 x 20 m

Separation efficiency *: 96%

Material thickness: about 70 mm (3 inches)

Initial pressure difference: 4 - 10 Pa

Recommended final pressure difference: 80 Pa

Nominal flow rate: 2500 - 6300 m³ / h / m²

Temperature resistance: max. 180 ° C

Container: Rolled goods

Manufacturer Nr.: JM-Products MRGRUEN3-20-100
