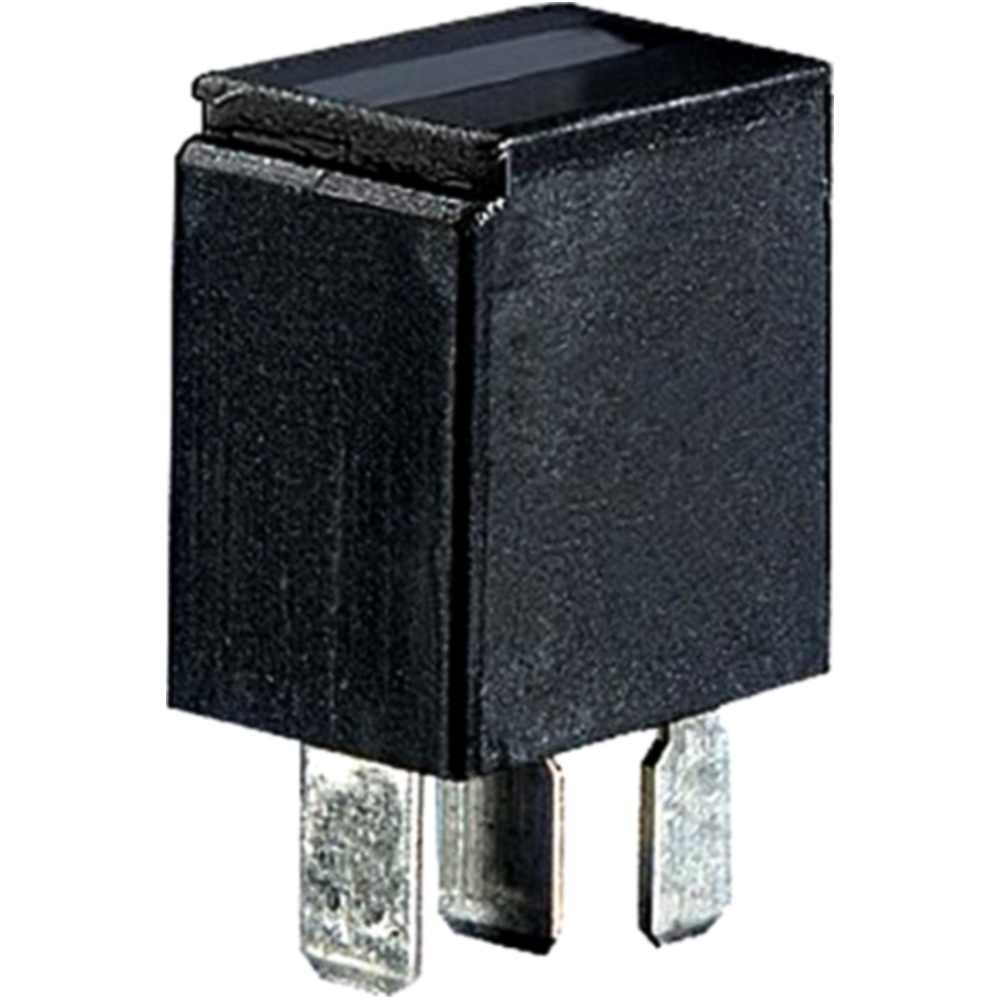

Working current relay diverse 4RA933766111
Priceunit: 1 Unit
HELLA Arbeitsstromrelais 4-polig, 12 VMikrorelais ohne HalterMit Parallelwiderstand zur SpuleÜber ein Schließer-Relais wird der Stromkreis zwischen der Stromquelle und einem elektrischen Verbraucher geschlossen, d. h. der Verbraucher wird eingeschaltetBetätigt werden Relais über Schalter, Impulsgeber oder SteuergeräteEinsatzbereich: Hauptscheinwerfer, Zusatzscheinwerfer, Hörner, Heizungen, Lüftermotoren und Fensterheber, Klima- und Zündanlagen usw.
Technische Daten:Anschlussart: 2 Flachsteckanschlüssen 4,8 mm und 2 Flachsteckanschlüssen 6,3 mm (Klemme 3 und 5)

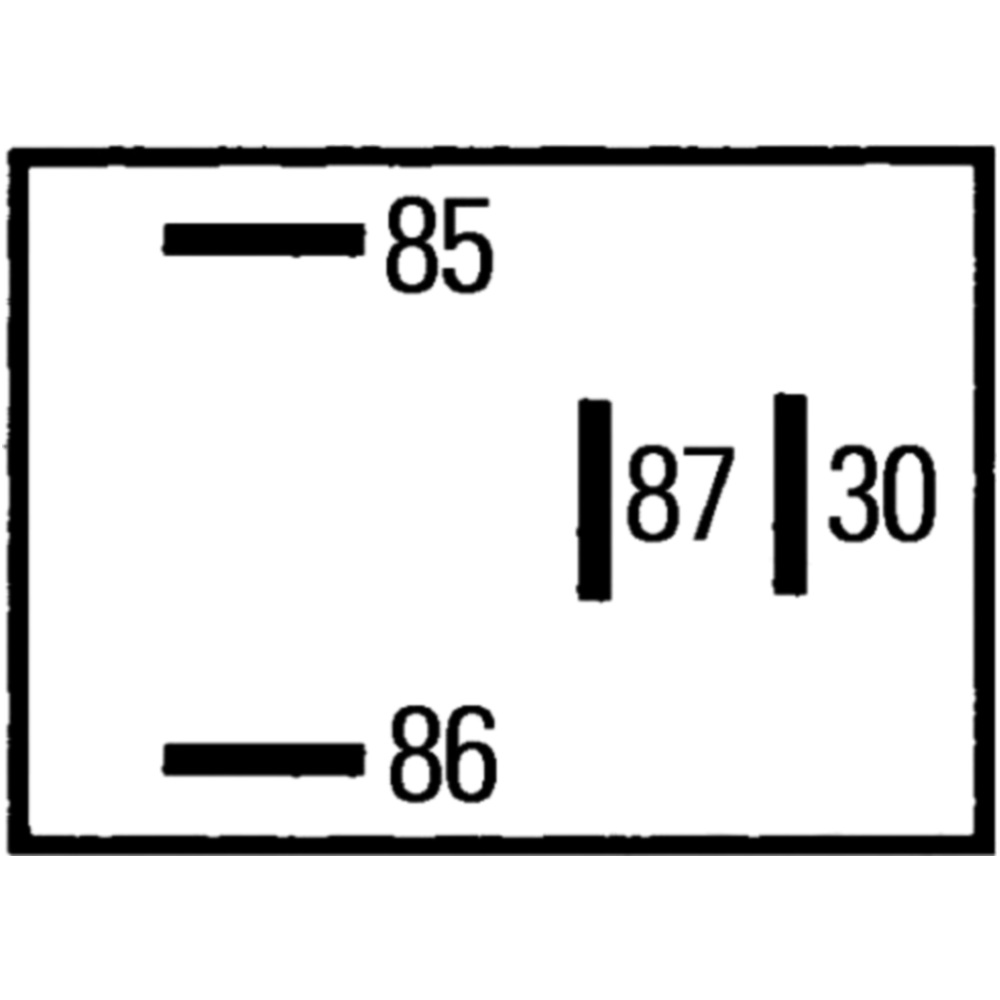

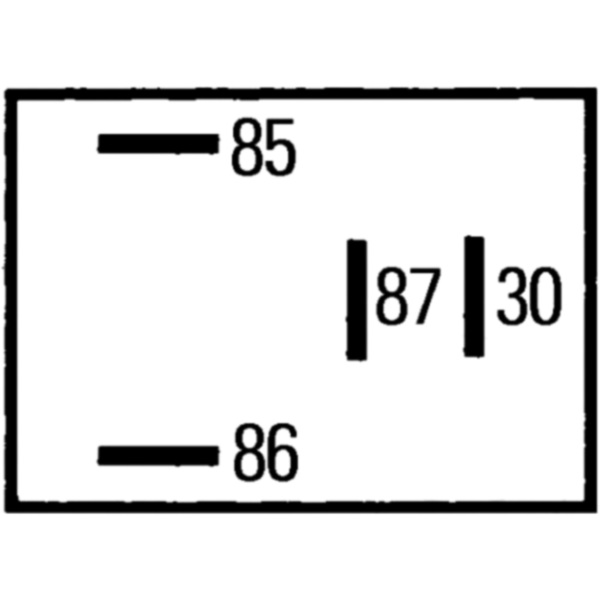

Steckerausführung-ID: C

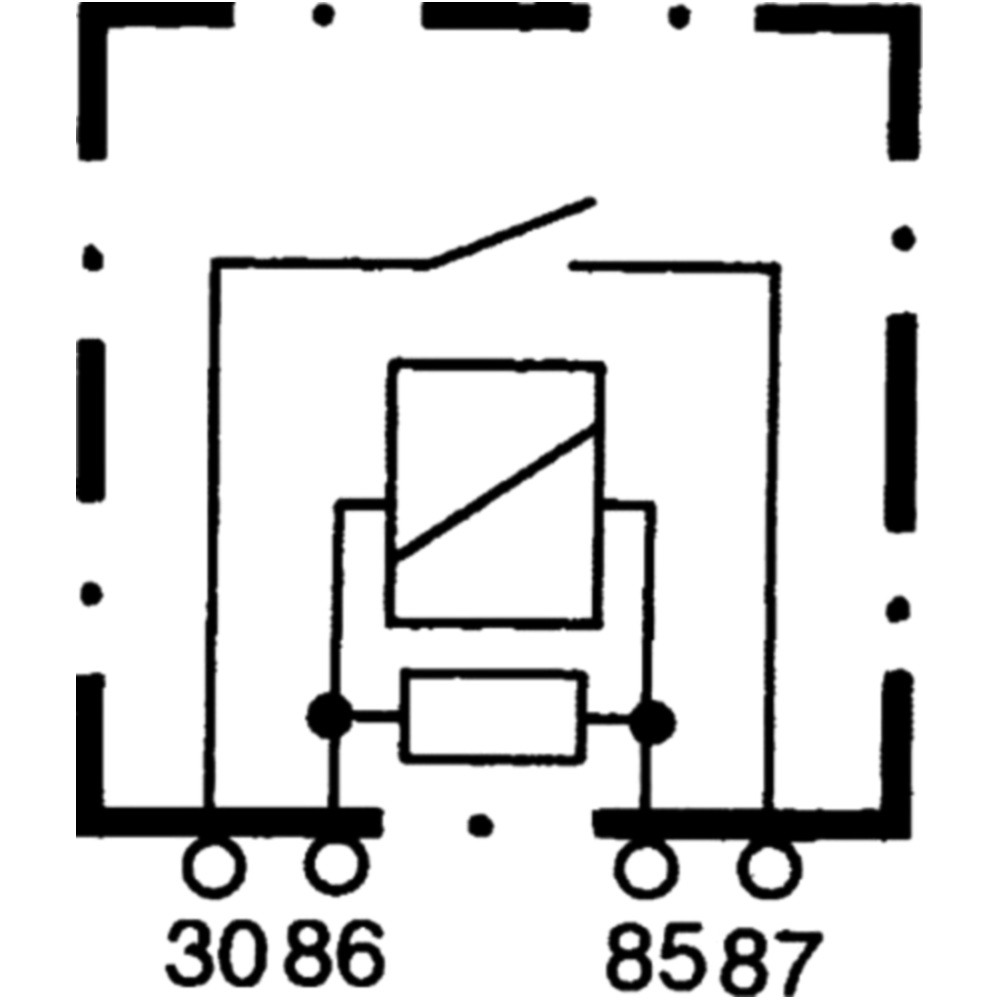

Schaltbild: S2
Schutzart: IP5K4
Temperaturbereich: -40 bis +125 °C
Belastbarkeit (bei +80 °C), Öffnerkontakt / Schließerkontakt
Ohmsche Last: - / 20 A
Induktive Last: - / 20 A
Kapazitive Last: - / 20 A
Technical data
| Technical Data | |
|---|---|
| Voltage | 12 V |
| Number of poles | 4 |
| Switch function | Closing |
| Load bearing capacity | 20 A |
| With holder | No |
Manufacturer Nr.: Hella 4RA 933 766-111
EAN: 4082300576108
EU Responsible Person : BTS GmbH, Plochingerstrasse 41, Otsfildern, 73760, info@biketeile-service.de
This product is a universal article. It means, that it can be used for a multitude of vehicles.
Unfortunately, it also means, that we cannot give information about your specific vehicle (Scooter, Motorcycle, or Quad).
It also means that specificities like the build for batteries, socket for lamps or engine type for oil has to be verified by the customer.
It is also possible that small scale conversion work might be needed for body or adjacent parts in the case of cosmetic- and styling parts.
We recommend that the customers check the product picture before ordering.
Please contact our customer service for questions or additional information
Unfortunately, it also means, that we cannot give information about your specific vehicle (Scooter, Motorcycle, or Quad).
It also means that specificities like the build for batteries, socket for lamps or engine type for oil has to be verified by the customer.
It is also possible that small scale conversion work might be needed for body or adjacent parts in the case of cosmetic- and styling parts.
We recommend that the customers check the product picture before ordering.
Please contact our customer service for questions or additional information
Please note, that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.:
