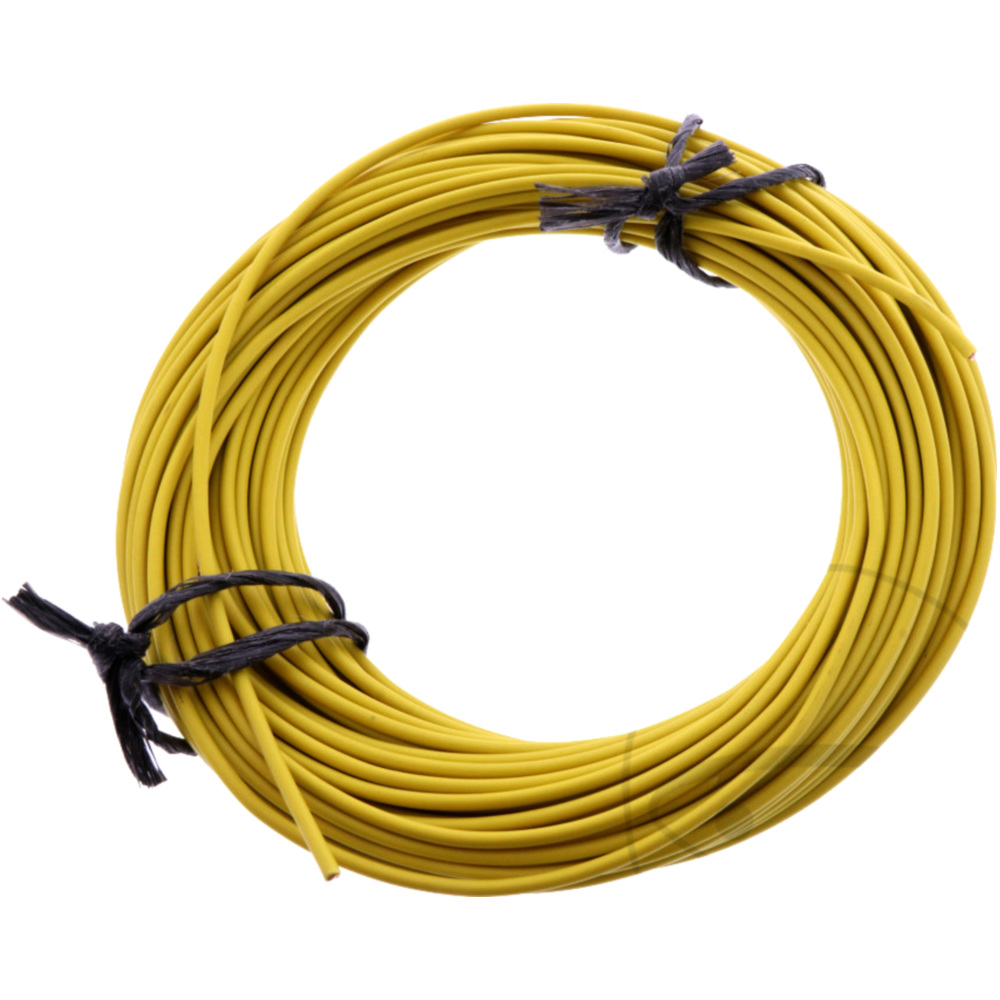

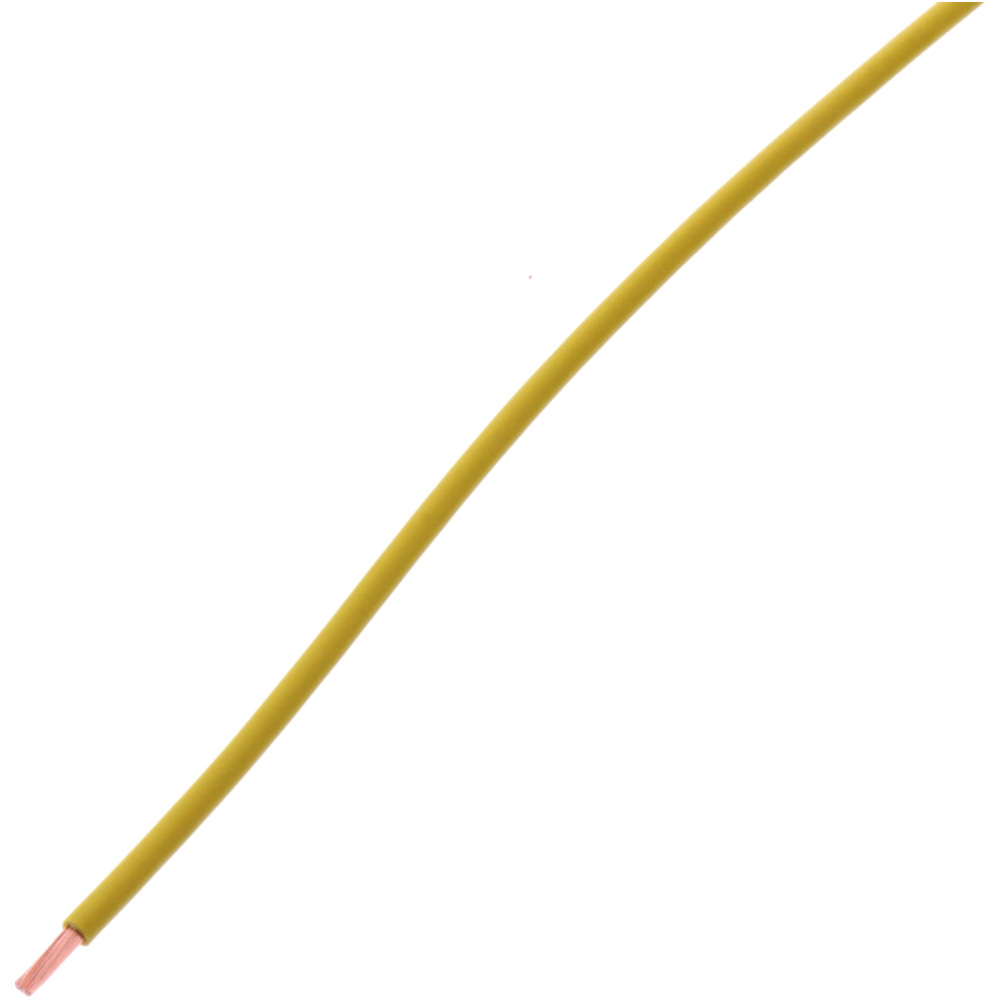

CABLE FLY 1.50 YELLOW JMP
CABLE FLY 1.50 YELLOW JMP
The CABLE FLY 1.50 YELLOW JMP is a high-quality single-core cable designed for low-voltage installations in motor vehicles. Manufactured with flexible automotive-grade bare copper wire, this cable features durable PVC insulation, ensuring optimal performance and longevity.
Technical Specifications:
- Conductor Cross-section: 1.5 mm²
- Nominal Insulation Thickness: 0.6 mm
- Outer Diameter: 3.0 mm
- Nominal Voltage: 220 V
- Test Voltage: 2500 V
- Operating Temperature Range: -40ºC to +90ºC
- Minimum Bending Radius: 4xD (D - outer cable diameter)
- Insulation Color: Yellow
- Length: 25 m
This cable conforms to the PN-E-90181 standard and features Class 5 copper wires per PN-EN 60228 specifications, making it a reliable choice for various automotive applications.
| Technische Daten | |
|---|---|
| Verwendung | Fahrzeugleitung |
| Anzahl der Adern | 1 |
| Querschnitt | 1.5 mm² |
| Isolierung | PVC |
| Farbe | gelb |
| Länge | 25 Meter |
Manufacturer Nr.: JMP
EAN: 4043981452488
Attention! Does not fit for Cectek/Herkules Quadrift LOF 525 2012, 40,8/20,4 PS, 30/15 kw
Please note, that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.:
