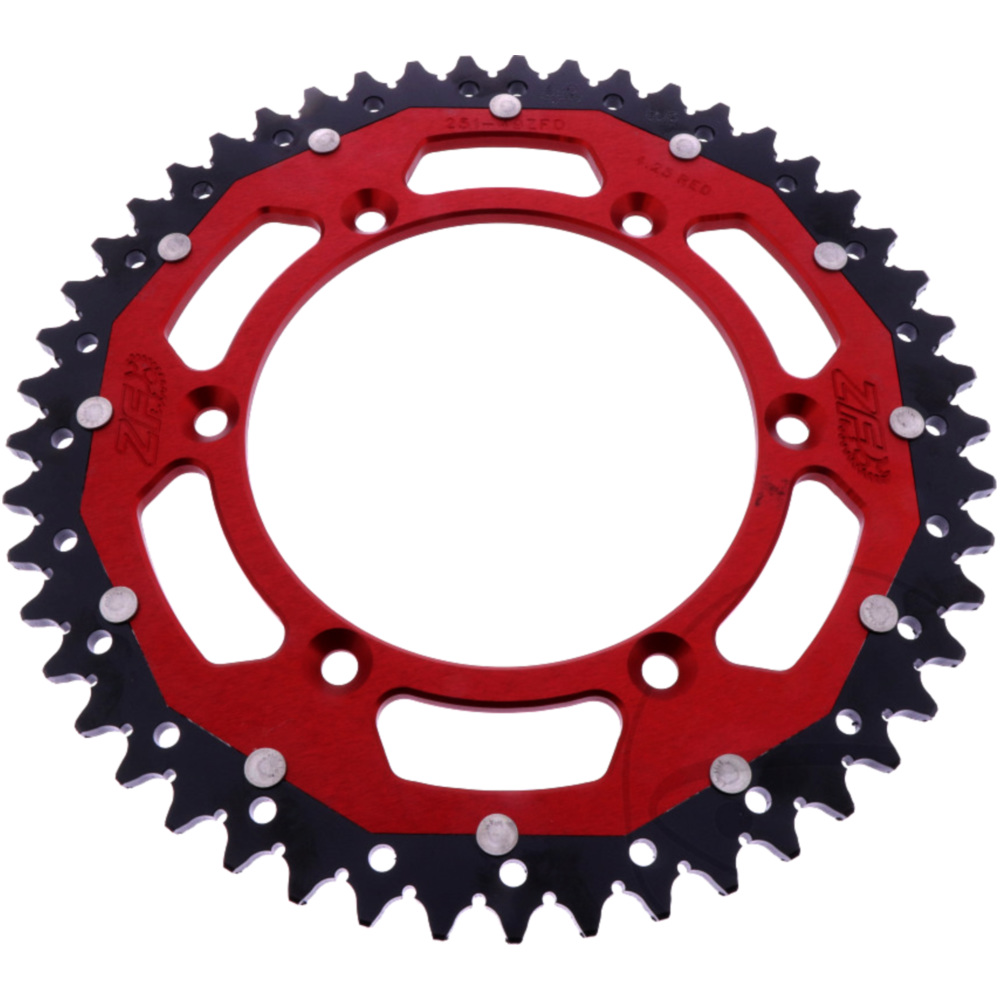

REAR SPROCKET DUAL 49 TOOTH PITCH 520 RED

Product No.:BTS-758.26.62

EAN:4043981437027

Manufacturer Nr:ZFD-251-49-RED

Shipping time: 2-4 business days (GER)

Availability:1000

43.73 EUR
incl. 19 % Tax excl. Shipping costs

QTY

REAR SPROCKET DUAL 49 TOOTH PITCH 520 RED

Product Name: REAR SPROCKET DUAL 49 TOOTH PITCH 520 RED

Specifications:

  • Inner Diameter: 130 mm
  • Bolt Spacing: 150 mm

ZF Dual sprockets represent the pinnacle of quality and innovation in the world of motorcycle parts. These sprockets are designed using a unique blend of steel durability with the lightweight properties of duralumin. This aluminum alloy is renowned for its exceptional strength and tightness while remaining lightweight.

The tensile strength of duralumin is approximately 11 times greater than that of standard aluminum. Enhanced through a hardening process, it nearly matches the strength of steel, delivering an optimal balance of lower weight and increased resistance.

The design of ZF Dual sprockets features precision milled grooves in the tooth base, providing superior self-cleaning capabilities. These grooves ensure that dirt and debris are unable to accumulate between the teeth, leading to decreased wear on both the chain and sprocket.

With a lifespan roughly three times longer than standard aluminum sprockets, ZF Dual sprockets are 50% lighter than traditional steel options. This makes them ideally suited for both road and off-road applications, providing reliable performance under various riding conditions.

Technical Data:
Pitch:   520
Inner Diameter:   130 mm
PCD:   150 mm
Bolt hole diameter:   8.5 mm
Number of mounting bolts:   6
Bolt type:   Countersunk
Number of teeth:   49
Sprocket material:   Dual
Colour:   Red
Manufacturer:   ZF

Manufacturer Nr.: ZF Sprockets ZFD-251-49-RED

EAN: 4043981437027

Attention! Does not fit for Suzuki GSX Katana 400 GS40XF 1981, 42 PS, 31 kw

Please note, that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.:
