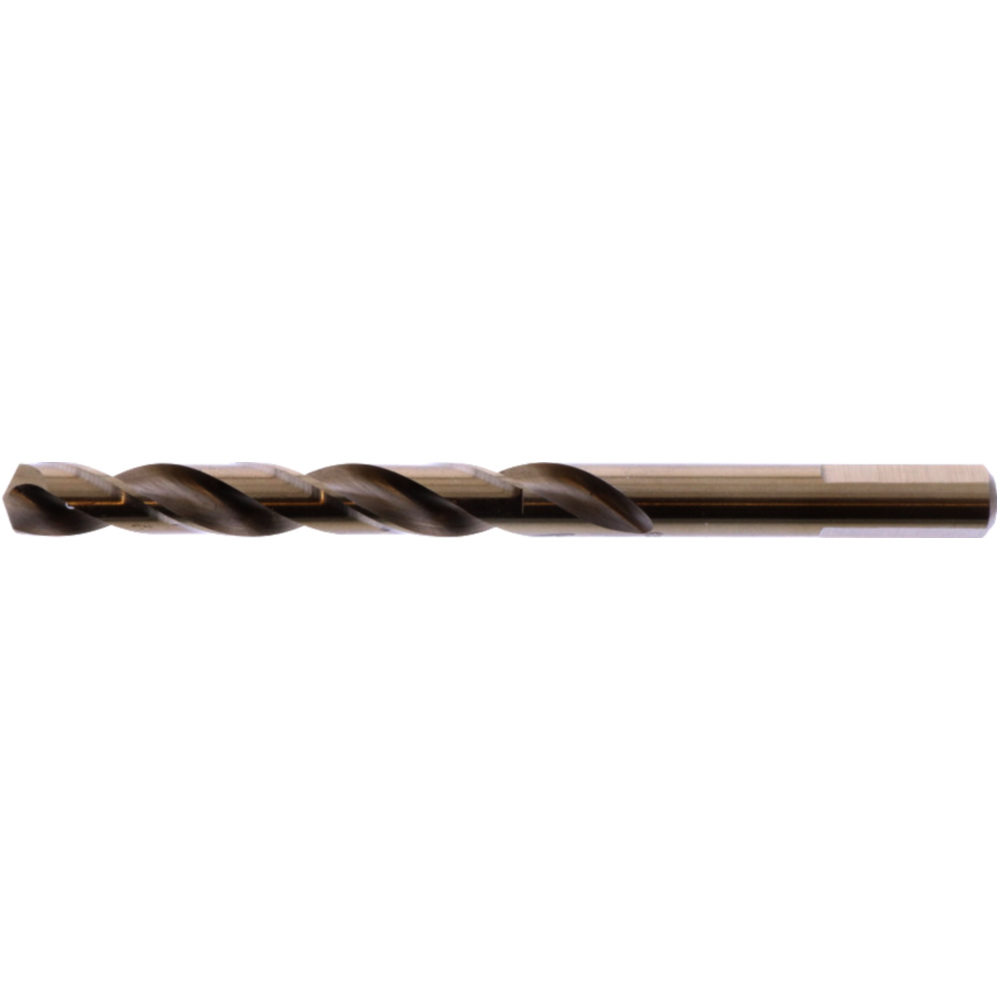

TWIST DRILL 9.5 HSSE-CO
Product Overview
Introducing the TWIST DRILL 9.5 HSSE-CO, a precision twist drill designed from high-speed steel with a 5% cobalt alloy for exceptional durability and cutting performance. This twist drill features a diameter of 9.5 mm and is ground from solid material, manufactured according to DIN 338 standards.
Key Features
- Right-hand cutting design for efficient drilling
- Cross grinding according to DIN 1412C
- Point angle of 135 degrees for enhanced penetration
- 3-sided shank to prevent slipping in the drill chuck
- Ideal for challenging materials, including alloyed and unalloyed steels with up to 1300 N/mm² strength, such as V2A, V4A, and grey cast iron
| Technische Daten | |
|---|---|
| Typ | Spiralbohrer |
| Verwendung | Metall |
| Satz | Nein |
| Durchmesser | 9.5 mm |
| Bohrlänge | 81 mm |
| Gesamtlänge | 125 mm |
| Material | HSS-Co |
| Aufnahme | rund |
Manufacturer Nr.: Condor Werkzeug SB23400950
EAN: 4250059522268
