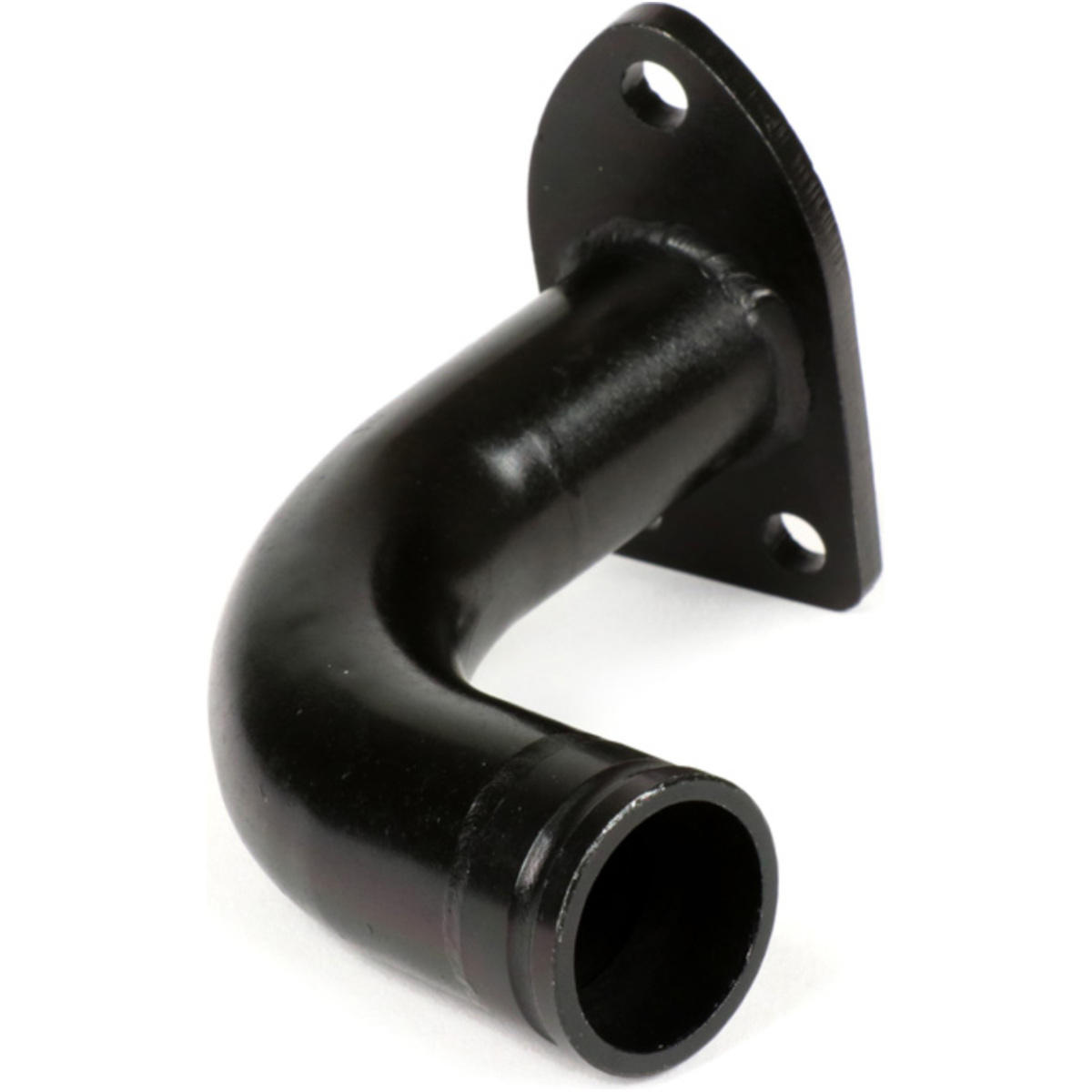

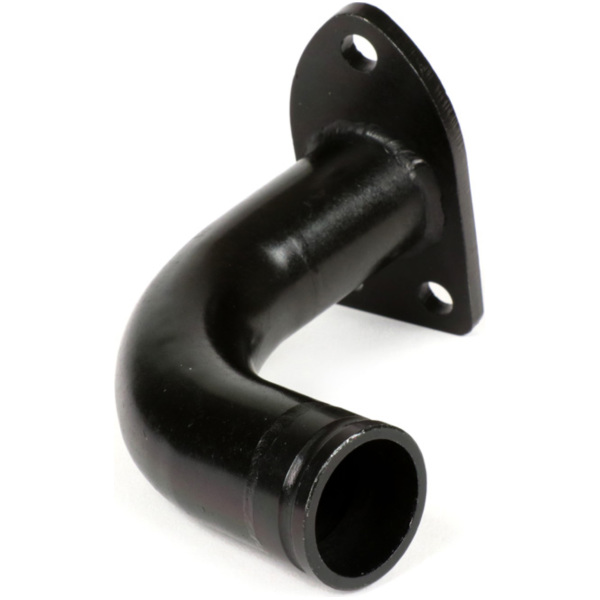

Intake manifold -BGM PRO Ø24mm fits Dellorto PHBL24/25, Polini CP23/24- Vespa GS150 (VS2-VS5), GS2 (VD1TS), GS3 (VD2TS) 50749

Inlet manifold BGM PRO for Dellorto PHBL24/25, Polini CP23/24 carburettor
Suitable for Vespa GS150 (VS2 to VS5), GS2 (VD1TS), GS3 (VD2TS)

• passage: Ø24mm
• Connection width: Ø30mm
• Fixing: 3-hole
• Rubber connection
• Steel, painted black

With this intake manifold, carburettors of 24-25mm can be run and thus the performance of the engine can be increased significantly. The carburettor is mounted in the direction of travel to the rear, the original intake system is not required, so an air filter must be mounted directly on the carburettor. No further modifications to the frame are necessary. The carburetor must be tuned individually to the respective engine.

We offer this intake manifold separately as well as in a set with connecting rubber or also directly with carburetor.

(US191118)
