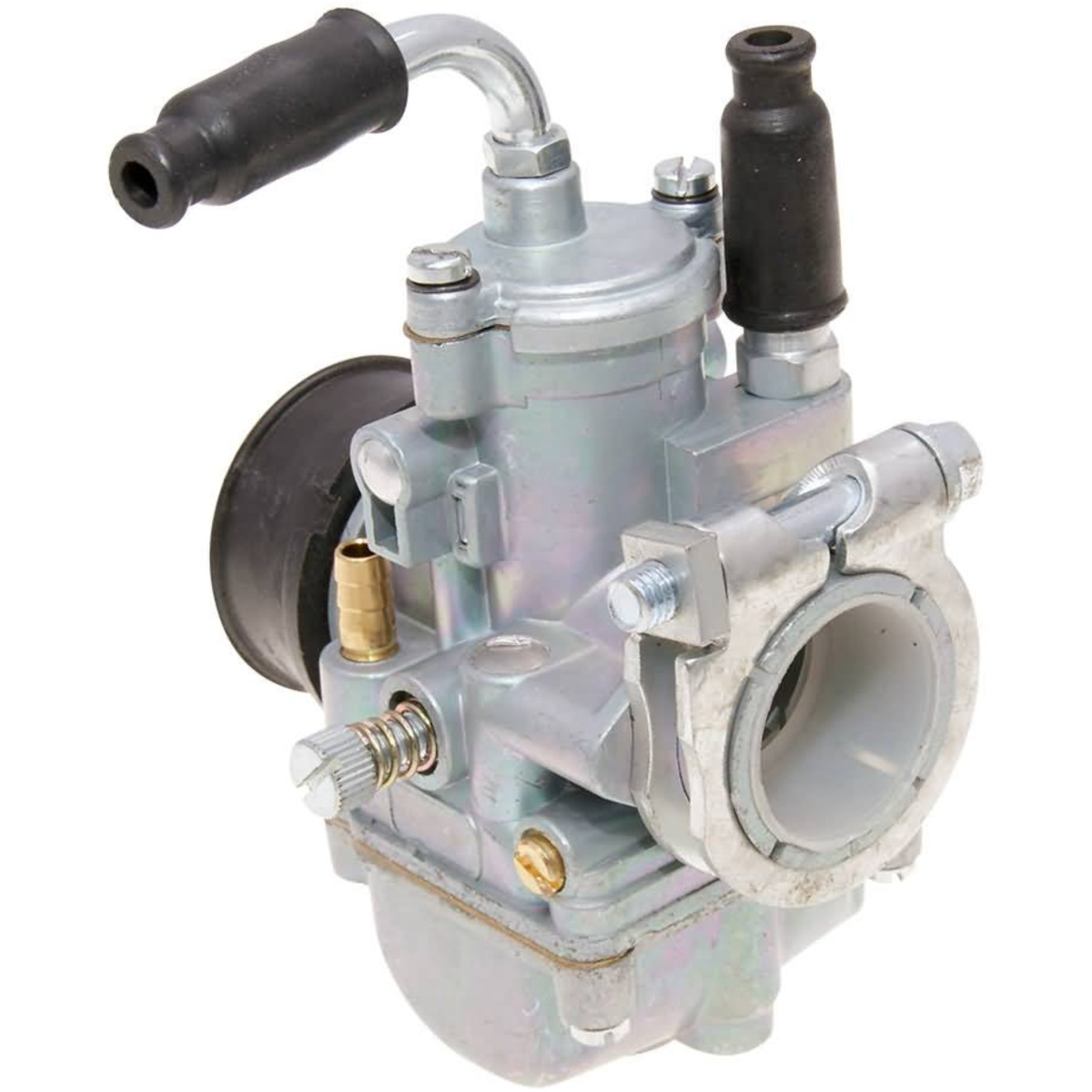

carburetor Naraku V.2 19mm PHBG with clamp fixation 24mm and manual choke NK200.29
Carburetor with clamp fixation (direct mount) are used where the carburetor is directly mounted on a stiff intake manifold. This is necessary on stiff stock intake manifolds coming with the vehicle or on several tuning intake manifolds. Generally we show the sleeve diameter of the carb flange in the title of the carb. In addition, the connection widths for intake manifolds can be found on matching intake manifolds.
Naraku tuning carburetor with Naraku connector for use with 38mm air filter connections, ideal for 70cc scooters and mopeds.
Set Up as follows:
Main Jet 85 (Dellorto M5)
Idle Jet 55
Choke 55.
Intake Connection 24mm
Air Filter Connection 32/38mm.
Manual Choke (not supplied).
Naraku tuning carburetor with Naraku connector for use with 38mm air filter connections, ideal for 70cc scooters and mopeds.
Set Up as follows:
Main Jet 85 (Dellorto M5)
Idle Jet 55
Choke 55.
Intake Connection 24mm
Air Filter Connection 32/38mm.
Manual Choke (not supplied).
Manufacturer Nr.: Naraku
EAN: 4250362423443
EU Responsible Person : BTS GmbH, Plochingerstrasse 41, Otsfildern, 73760, info@biketeile-service.de
Attention! Does not fit for Triumph Bonneville T100 Centennial 800 908MD 2002, 34 PS, 25 kw
Please note, that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.:
