ESJOT Chain pinion, 16 teeth

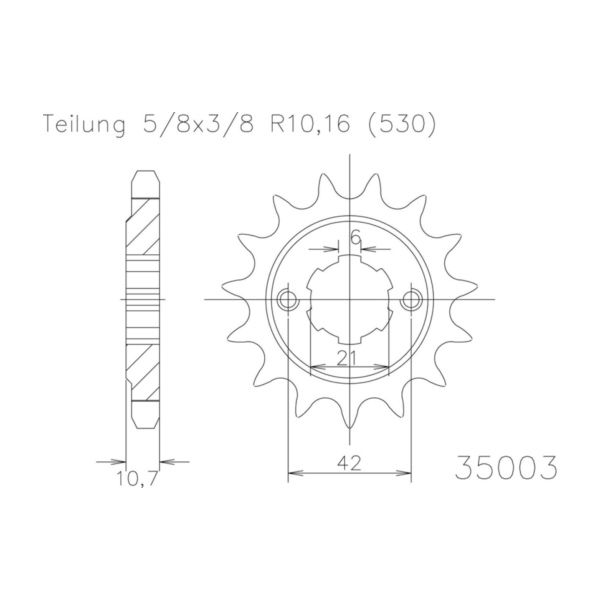

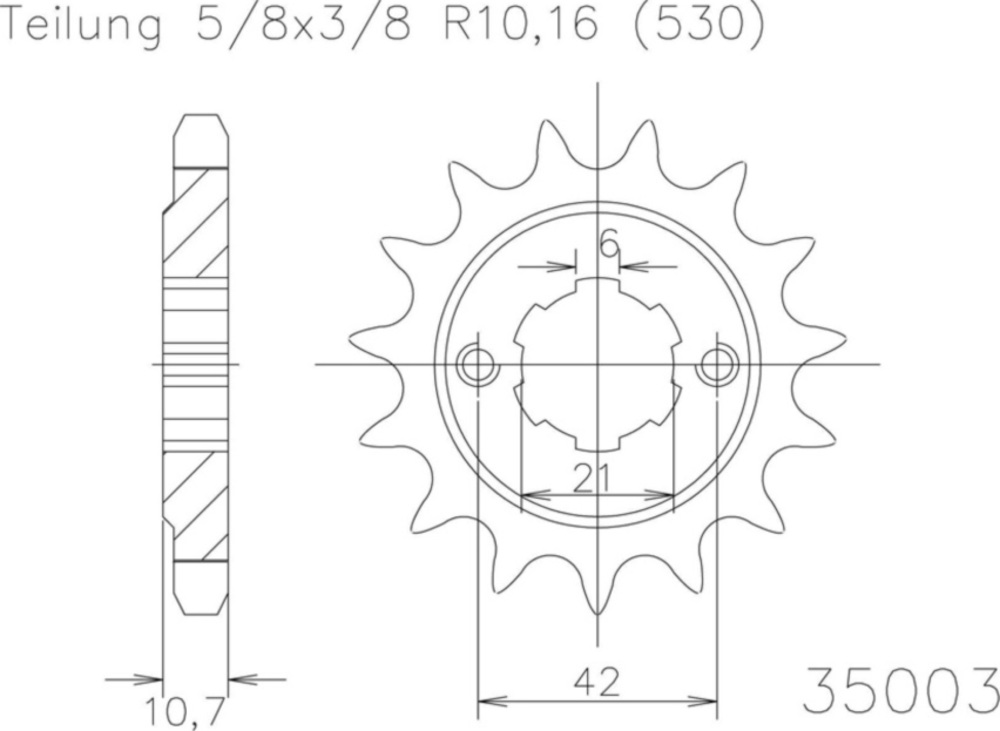

Pinion 16 teeth steel 530 pitch (5/8x3/8)
Pinion 16 teeth steel 530 pitch (5/8x3/8)
For pinions, only the 16 MnCR 5 steel is machined according to OEM quality on high-precision automatic lathes
CNC. Due to the special gearing process and a
case hardening of 700 HV 40 at a case depth of 0.4 mm, our pinions meet the highest quality requirements. Modern broaching machines guarantee an exact
fit dimension on the drive shaft with a radial and axial runout tolerance of less than 0.1 mm.
Technical data
| Artikel: | PW-92-35003-16 |
| EAN: | 4054783153763 |
| Manufacturer: | Esjot |
| Category: | Ritzel |
| Weight: | 0.1750 |
| Material: | Stahl |
| Chain division: | 530 |
| Number of teeth: | 16 |
EU Responsible Person : BTS GmbH, Plochingerstrasse 41, Otsfildern, 73760, info@biketeile-service.de
Attention! Does not fit for Kawasaki GPZ 500 EX500D 1998, 60/50/34/27 PS, 44/37/25/20 kw
Please note, that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.:
