ESJOT Chain pinion, 15 teeth

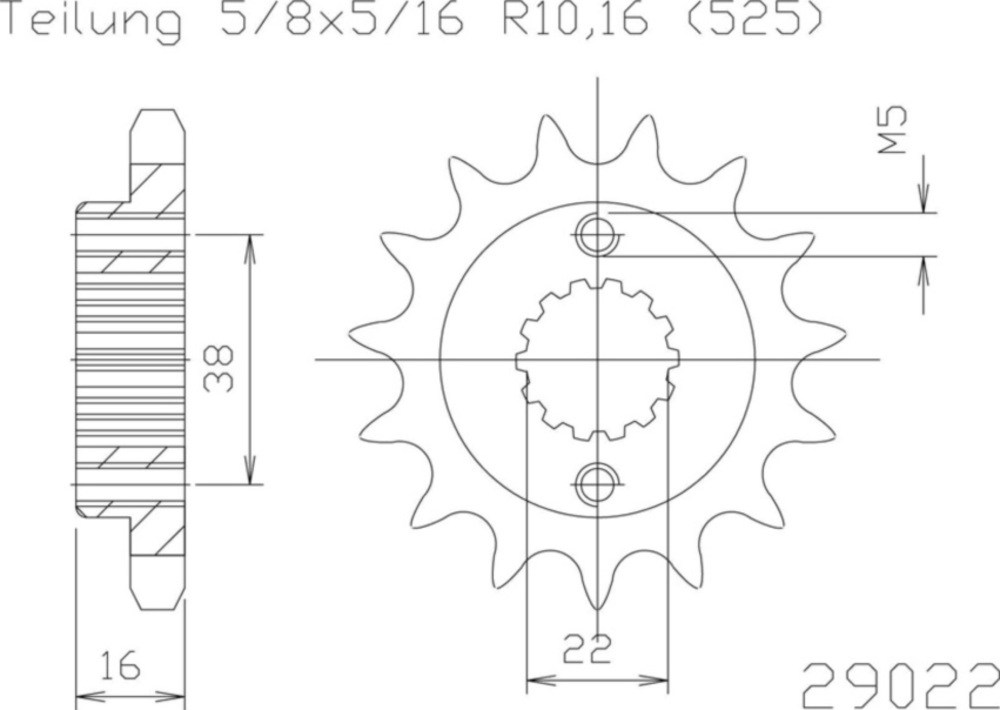

Pinion 15 teeth steel 525 pitch (5/8x5/16)
Pinion 15 teeth steel 525 pitch (5/8x5/16)
For pinions only the steel 16 MnCR 5 is machined according to OEM quality on high precision
CNC automatic lathes. Due to the special gearing process and a case hardening of 700 HV 40 at a case depth of 0.4 mm, our pinions meet the highest quality requirements. Modern broaching machines guarantee an exact
fit dimension on the drive shaft with a radial and axial runout tolerance of less than 0.1mm.
Note: Screws not included in delivery.
Technical data
| Artikel: | PW-92-29022-15 |
| EAN: | 4054783110810 |
| Manufacturer: | Esjot |
| Category: | Ritzel |
| Weight: | 0.1750 |
| Material: | Stahl |
| Chain division: | 525 |
| Number of teeth: | 15 |
EU Responsible Person : BTS GmbH, Plochingerstrasse 41, Otsfildern, 73760, info@biketeile-service.de
Attention! Does not fit for Suzuki GS Gussrad 1000 GS1000 1980, 90 PS, 66 kw
Please note, that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.:
