ESJOT Chain pinion, 15 teeth 92-29021-15

ESJOT Chain pinion, 15 teeth

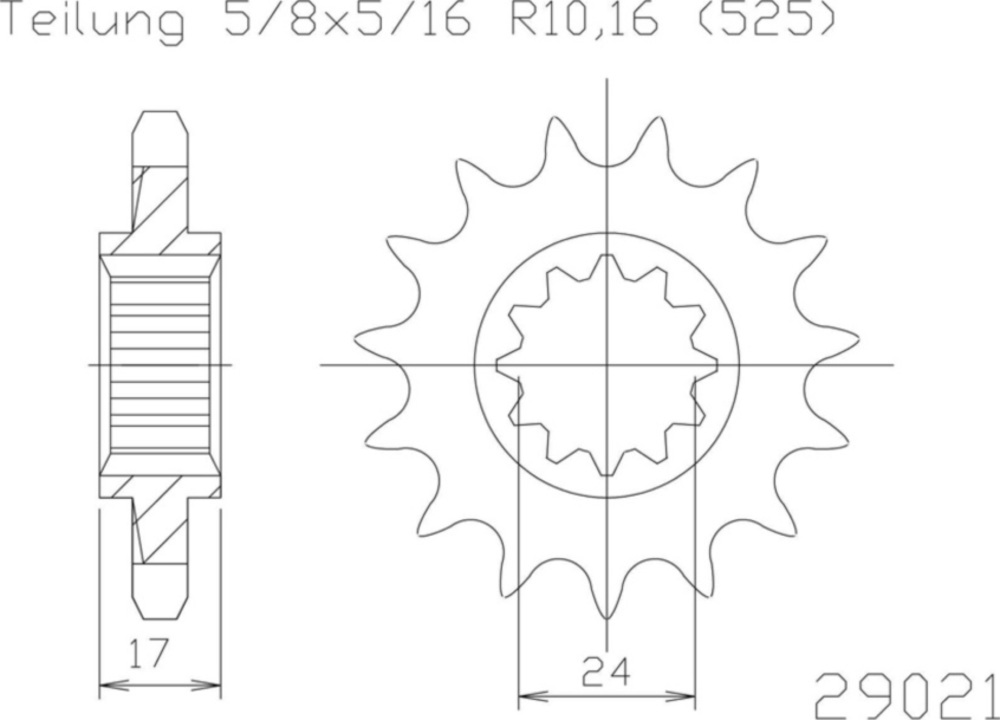

Pinion 15 teeth steel 525 pitch (5/8x5/16)

Pinion 15 teeth steel 525 pitch (5/8x5/16)

For pinions only the steel 16 MnCR 5 is machined according to OEM quality on high precision
CNC automatic lathes. Due to the special gearing process and a case hardening of 700 HV 40 at a case depth of 0.4 mm, our pinions meet the highest quality requirements. Modern broaching machines guarantee an exact
fit dimension on the drive shaft with a radial and axial runout tolerance of less than 0.1mm.

Note: Screws not included in delivery.

Technical data
