ESJOT Chain pinion, 14 teeth

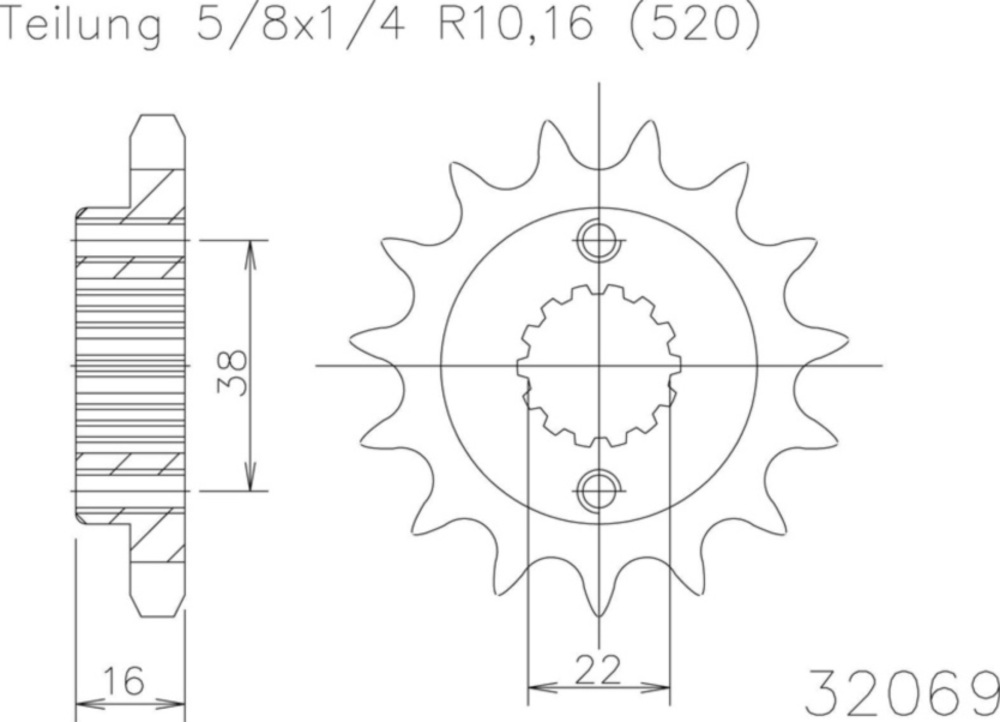

Pinion 14 teeth steel 520 pitch (5/8x1/4)
Pinion 14 Teeth Steel 520 Pitch (5/8x1/4)
For pinions, only the 16 MnCR 5 steel is machined to OEM quality on high precision CNC lathes. Due to the special gearing process and a
case hardening of 700 HV 40 at a case depth of 0.4 mm, our pinions meet the highest quality requirements. Modern broaching machines guarantee an exact
fit dimension on the drive shaft with a radial and axial runout tolerance of less than 0.1 mm.
Technical data
| Artikel: | PW-92-32070-14 |
| EAN: | 4054783306244 |
| Manufacturer: | Esjot |
| Category: | Ritzel |
| Weight: | 0.1380 |
| Material: | Stahl |
| Chain division: | 520 |
| Number of teeth: | 14 |
EU Responsible Person : BTS GmbH, Plochingerstrasse 41, Otsfildern, 73760, info@biketeile-service.de
Attention! Does not fit for Yamaha TZR 250 2MA 1987, 50 PS, 37 kw
Please note, that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.:
