MOTOISM Headlight CONTROLPIT TWO blank

MOTOISM Headlight CONTROLPIT TWO blank

Made in Germany - made of extremely lightweight high-performance material, stainless steel and anodised aluminium

- Easy to mount due to the RECORDING SYSTEM - CONTROLPIT ONE & TWO
- Headlights (LED or halogen) infinitely adjustable - high and low beam (with E-approval)
- Mounting of motogadget motoscope mini (digital speedometer), mo.lock (digital ignition lock) and indicator lights
- Please select the correct variant
- Housing made of black, additively manufactured high-performance material
- High-quality surface finish in matt black
- Laser-cut, CNC edged stainless steel support structure

Made in Germany - from extremely lightweight high performance material, stainless steel and anodized aluminum

The ALL-IN-ONE SOLUTION

Product Features:

Easy to mount due to the RECORDING SYSTEM - CONTROLPIT ONE + TWO

Headlight (LED or halogen) infinitely adjustable - high and low beam (with E-approval)

Mounting motogadget motoscope mini (digital speedometer), mo.lock (digital ignition lock) and indicator lights
>Please choose the right variant

Housing made of black, additively manufactured high-performance material

High-quality surface finish in matt black

Laser-cut, CNC-edged support structure made of stainless steel


For the variants that include the products motoscope mini, the Mo.Lock or indicator lights, these products must be ordered separately.

The CONTROLPIT TWO headlight is a combination of cockpit and headlight developed by MOTOISM. The light mask is equipped with a low beam and a high beam. In addition, the headlight is equipped with a fixing device for the Motogadget motoscope mini digital speedometer, LED indicator lights (high beam, indicators, oil pressure and idling) and the Motogadget m.lock digital ignition lock. The holder for the Motogadget m.lock is installed as standard and requires no additional attachments for mounting.

The housing of the light mask consists of an additively manufactured high-performance material.

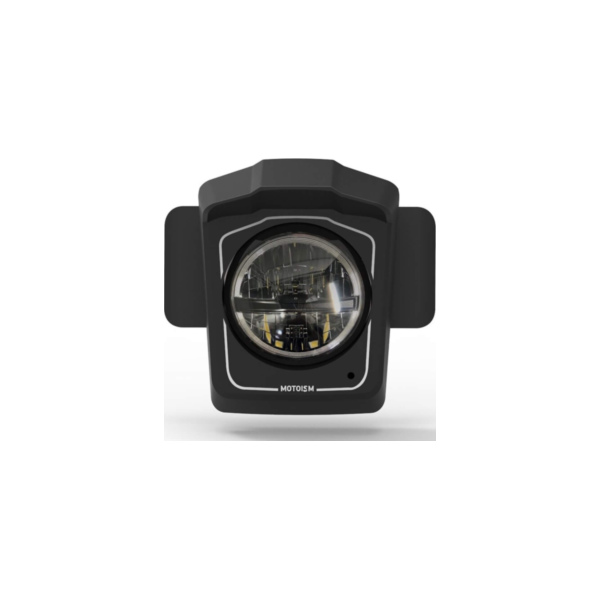

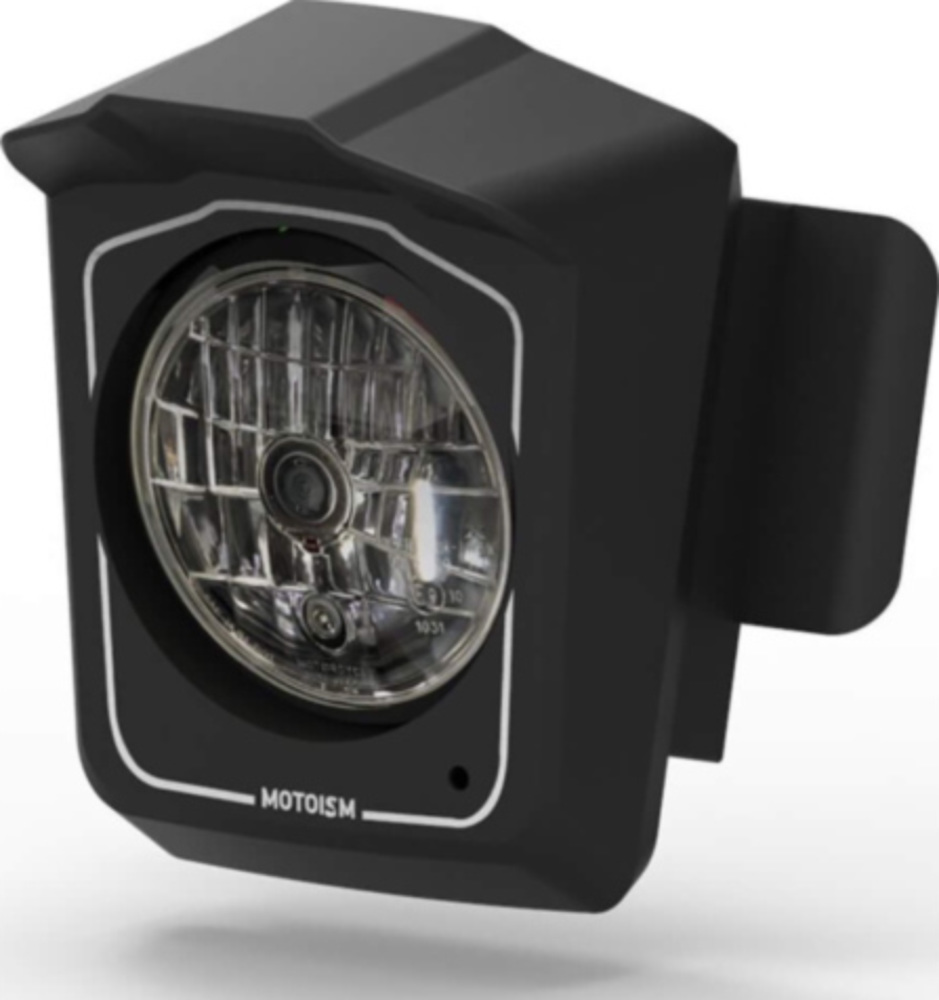

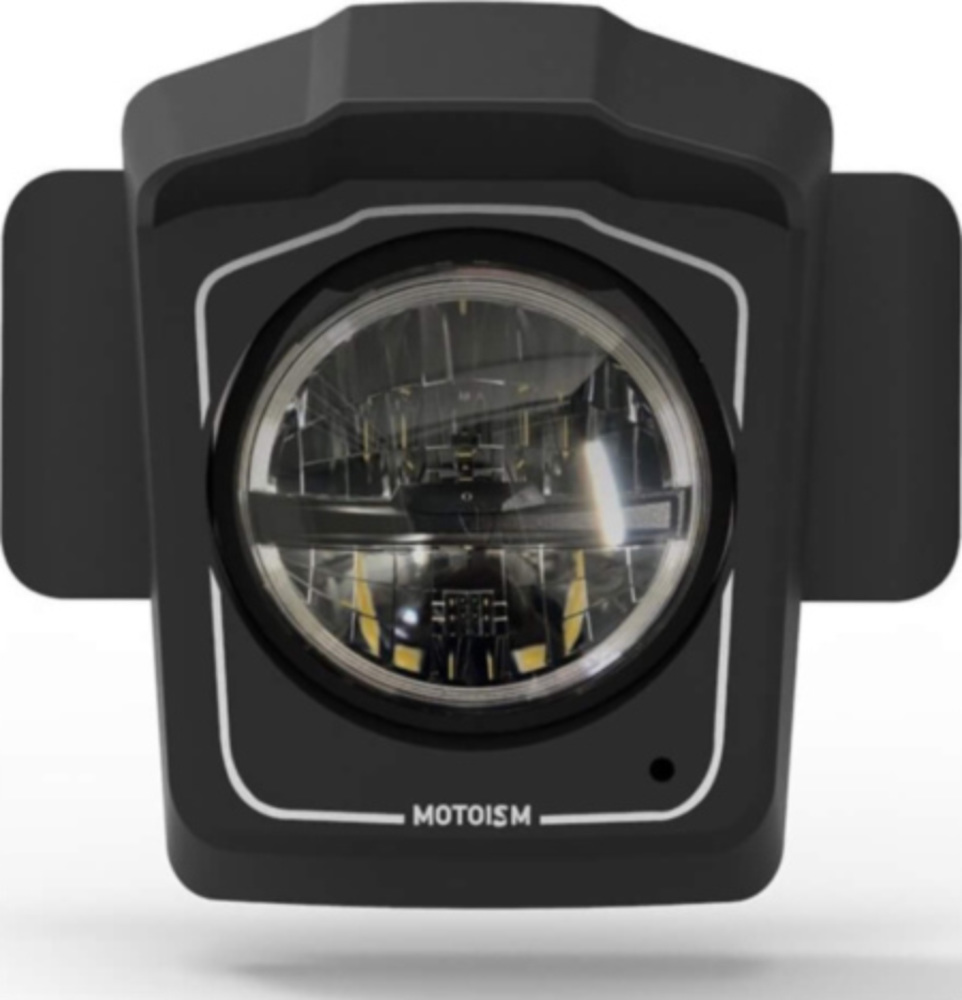

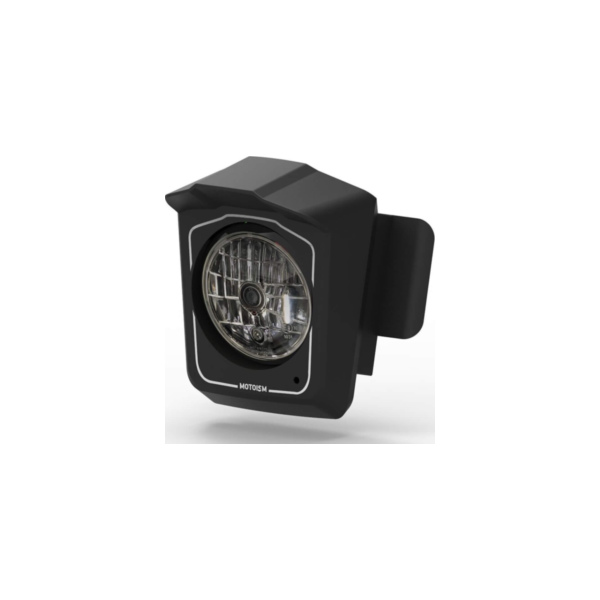

The headlight provides a clear and bright high beam, low beam and parking light. We can supply the headlight in an LED (Highsider TYP-5) or halogen version. The headlamps can be easily and continuously adjusted by means of an adjusting screw.

Made for you:

Through the MOTOISM TAILOR-MADE process, you are free to choose which additional features you want your light mask to cover. Be it the digital speedometer motoscope mini, the digital ignition lock m.lock or the LED indicator lights.

Please note that the appearance differs depending on the combination of optional extras. See the pictures below for more information.


Technical data:

Dimensions:

Width: approx. 20 cm (without holder)

Höhet: approx. 25 cm

Depth: approx. 16.5 cm (without halogen lamps)


Floodlight:

Halogen variant: 55 watt

LED variant: 25 watt
