HIGHSIDER LED spotlight FT13- HIGH

HIGHSIDER LED spotlight FT13- HIGH

LED driving lamp FT13- HIGH, with parking light, black, E-marked, piece.

HIGHSIDER LED spotlight FT13- HIGH with parking light, E-approved

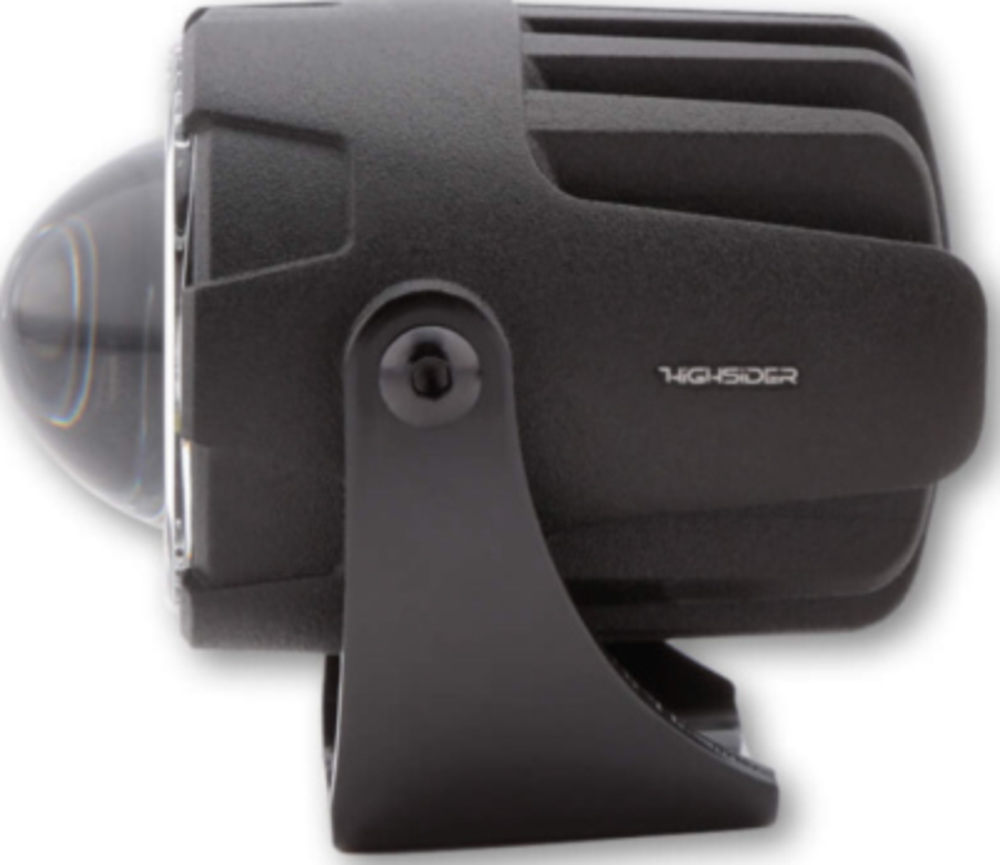

Small LED spotlight, solidly manufactured and with high light output. The FT13- HIGH is a powerful spotlight with a round lens. The matt black housing of the headlamp is made of high-quality aluminium and is equipped with a robust steel bracket. The LED technology and the insert used produce a symmetrical, bright light for optimum perception. Together with the LED low beam headlight FT13- LOW (to be ordered separately) a real dream team. The result is impressive: Ideal for conversions of all kinds and STVO-compliant thanks to the test mark.

The bright joy - give your bike your distinctive style! The unusual design and perfect technology of the HIGHSIDER headlight series will definitely make you a highlight!

dimensions:
diameter: 55 mm
diameter lens: 44 mm
distance of the fixing holes: 55 mm
fixing holes on the side: M 4
depth of the housing/from fixing point: 70 mm / 40 mm

dimensions of the e-box:
width: 53.3 mm
depth: 33.5 mm
height: 16.5 mm
weight: 0.25 kg

material of housing: aluminium
material of holder: Steel

Connections:
Blue = High beam (+)
Brown = Parking light (+)
Green = Ground (-)

Supply: 1 piece, including mounting material

NOTES:
- EMC ready
- The headlight must never be connected without the supplied black electronic box for voltage control.
