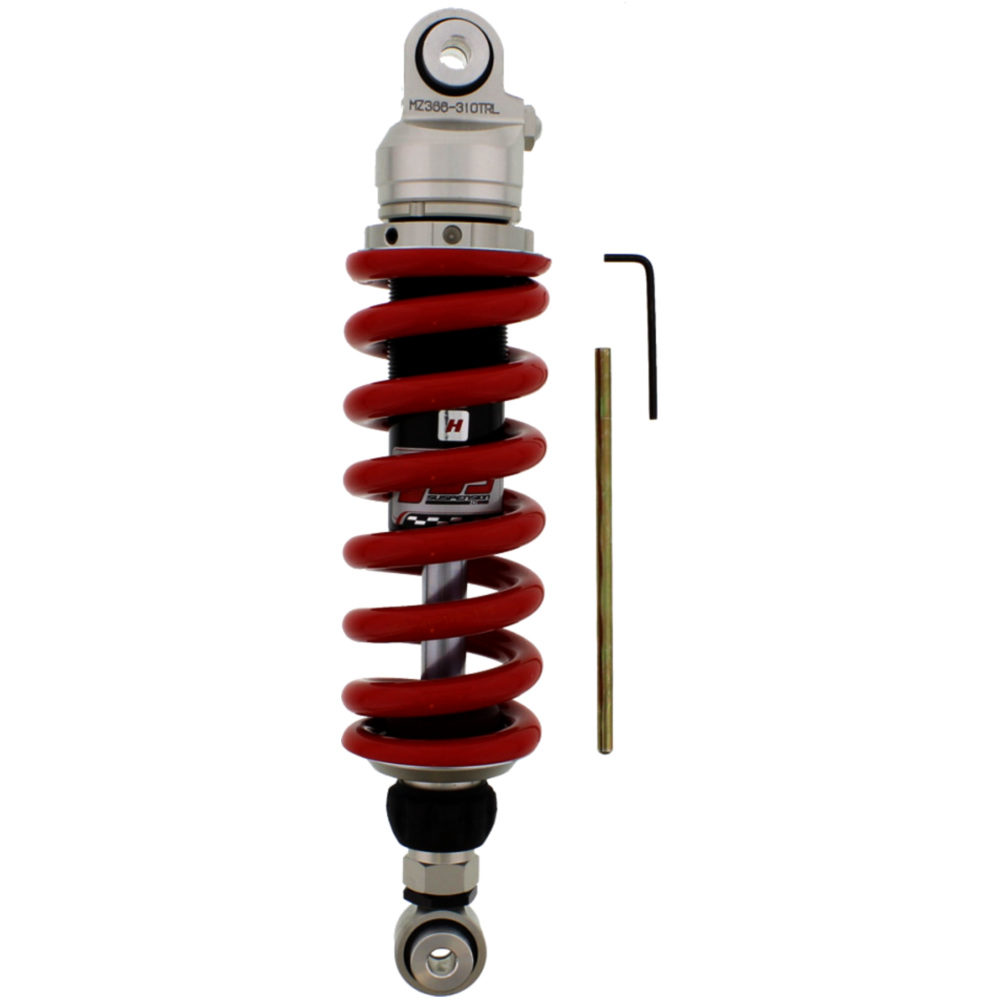

Yss shock absorber MZ366310TRL22JX
Priceunit: 1 Unit
Gefräster Alukörper, Federbein in Federvorspannung und Zugstufe (30 Klicks) einstellbar.
Die Arretierung der Federvorspannung erfolgt mittels Gewindestift.
Die Länge des Dämpfers ist um +-5mm verstellbar.
Das Einstellwerkzeug ist im Lieferumfang enthalten.
Technical data
| Technical Data | |
|---|---|
| Type | Gas Damper |
| Top mount | Eye |
| Eye Diameter | 10 mm |
| Length | 310 320 mm |
| Bottom mount | Eye |
| Eye Diameter | 10 mm |
| Adjustment | Preload (continuous) Rebound |
| Spring colour | Red |
| Spring Characteristics | 46-170-175 |
| Damper reservoir | No |
| Manufacturer | YSS |
| Piston diameter | 36 mm |
| Rod Diameter | 16 mm |
Manufacturer Nr.: YSS MZ366-310TRL-22-JX
EAN: 8858803408484
EU Responsible Person : BTS GmbH, Plochingerstrasse 41, Otsfildern, 73760, info@biketeile-service.de
Attention! Does not fit for Aprilia SR Ditech Sport 50 RLD10 2004, 4,5 PS, 3,3 kw
Media:
ABEPlease check approvals/GOP!
Homologated vehicles are marked with [Homologation]. No such mark - no homlogation. Feel free to contact us for further questions
MontageanleitungPlease note, that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.:
