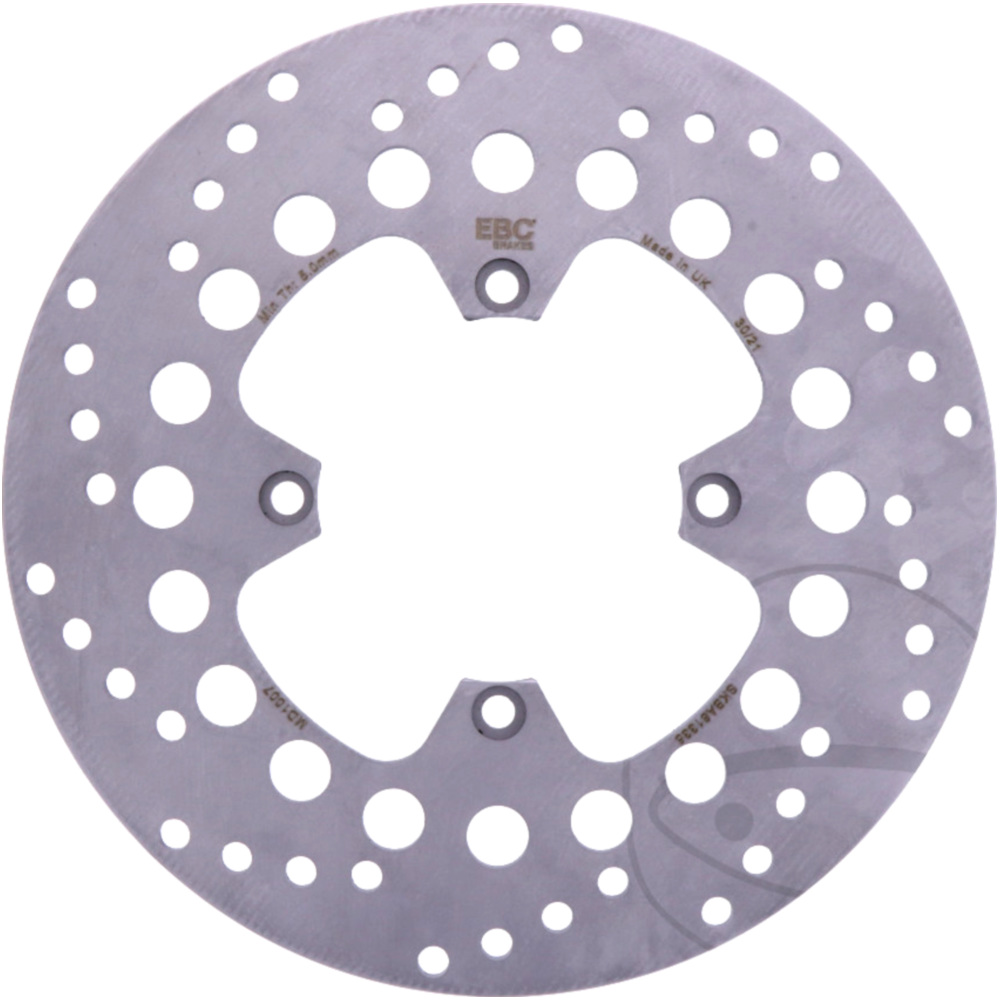

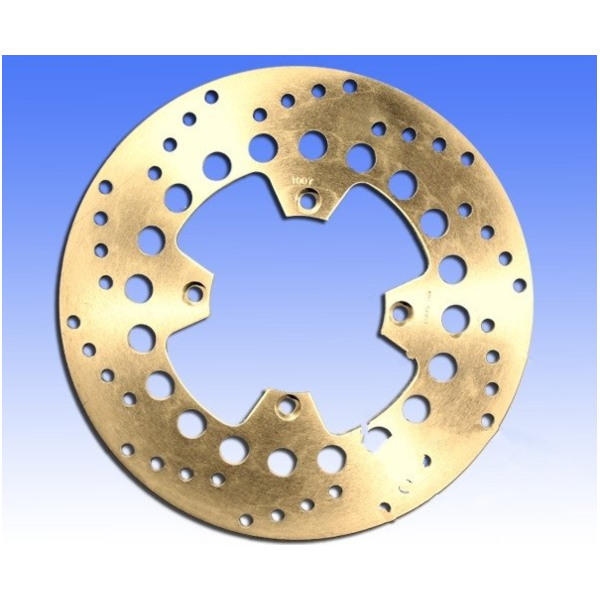

Brake disc ebc MD1007

Product No.:BTS-760.01.33

EAN:5050953300165

Manufacturer:EBC

Manufacturer Nr:MD1007

Shipping time: 2-4 working days (GER)

Availability:100000

111.76 EUR
incl. 19 % Tax excl. Shipping costs

QTY

Brake disc ebc MD1007

Priceunit: 1 Unit

EBC HPSR brake disc, fixed version. MADE IN UK. Objective in the development is to improve the braking performance compared to the original brake disc. EBC used HPSR steel with a low carbon content, having a higher coefficient of friction by 18%. This steel is much more resistant to rust than cast steel. In addition, the entire surface with a 3-micron thick zinc coating is protected, the already abrades itself when decelerating in the brake pad contact zone. Only in this area, light surface rust can form after long use. The brake discs are drilled in the bird's wings Design to as possible to get along with as few holes with optimum cleaning the brake disk of rainwater and brake dust. The fewer holes are placed, the better the wet braking performance and the lower the wear. - Brake ring made of forged steel HPSR milled with low carbon content. - Therefore, no distortion of the brake disc even at maximum load. - No vitrification of the braking surface, coefficient of friction, therefore, remains constant. - Braking surface drilled with optimized hole pattern. - Galvanized to protect against corrosion. - Lowest manufacturing tolerances. - EBC recommends brake pads to ensure braking performance EBC Double-H sintered. - Standalone design.

Technical data

Technical Data
Outer Diameter   256 mm
Inner Diameter   94.2 mm
PCD   110 mm
Number of mounting bolts   4
Bolt hole diameter   8.5 mm
Thickness   6 mm
Type   Fixed
Manufacturer   EBC

Manufacturer Nr.: EBC MD1007

OEM: 43251-MT4-000 43251-MCW-D11 43251-MBG-E01 43251-MCW-D01

EAN: 5050953300165

Mounting instruction:

Media:
   ABE
